- Increased working pressures
- Abrasion resistant cover-40 to 260 F temperature rating
- Meets and exceeds SAE 100R12, EN856 Type R12, D"856/4SP Performance (sizes -8 thru -16)
| Type | Hydraulic Hose |

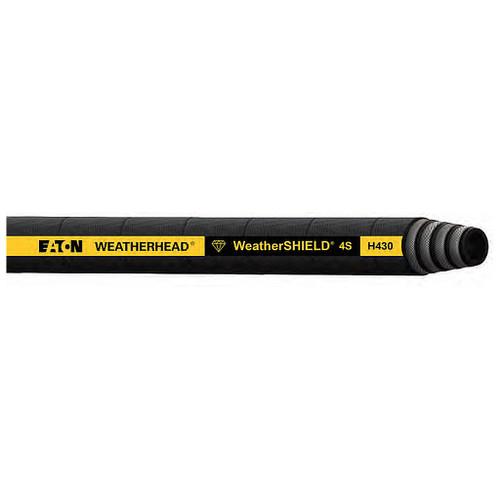

| Style | H430 High Pressure Spiral |
| Size | 1-1/4" |
| Material | Synthetic Rubber/WeatherSHIELD |
| I.D. | 1.25" |
| O.D. | 1-7/8" |
| Color | Black |
| Inner Tube | Synthetic Rubber |
| Outer Cover | WeatherSHIELD |
| Dash Size | -20 |
| Recommended Fitting Types | 430 'U' Series |
| Burst Pressure | 18000 PSI |
| Max Working Temp F | 260 |
| Working Pressure | 4500 PSI |
| Temp. Range | -40°C to +127°C (-40°F to +260°F) |
| Certifications | SAE 100R12|ABS|EN856 4SP|EN856 Type R12 |
| Compliances | MSHA Approved|DNV|USCG |
| Manufacture Part # | H43020 |
