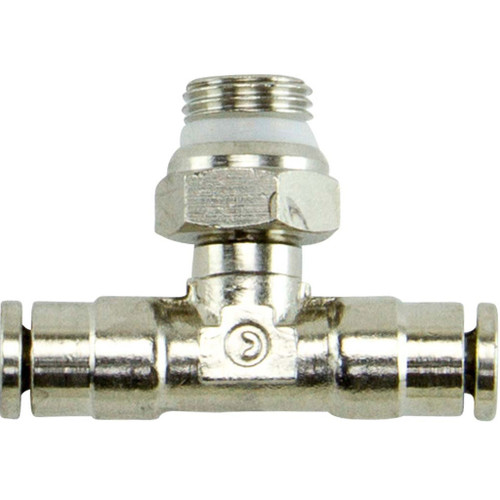

- Push Connect Plus, Male Branch Tee Swivel has a captured Teflon® ring around the base of the hex shoulder, seals similar to a reusable (SAE type) seal eliminates thread sealant and loose particles associated with thread sealant
- Push Connect Plus has a lower profile for those tight places
- The new brass collet is designed for use with all types of tubing from Nylon to 90A durometer Polyurethane, including Polyethylene, and PVC tubing
| Type | Push Connect Plus |
| Style | Male Branch Tee Swivel |
| Size | 1/2" x 3/8" |
| Material | Brass |
| Tube O.D. | 1/2" |
| MPT | 3/8 |
| Temp Range | -40° F to 200° F |
| Pressure | Up to 250 psi depending on tube size |
| Sealing Method | O-Ring of Buna-N Construction |
