- Bite-the-wire technology, providing higher operating and burst pressure
- Flat crimp for easier routing
- Diverse number of applications
- Wide selection of hose end configurations
- Orderable individually
| Type | WeatherGRIP 'Z' Series Hose Fittings |

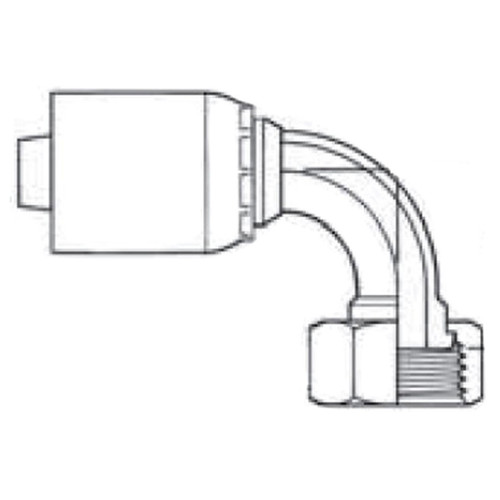

| Style | Female FOR-SEAL Swivel Short Drop 90° Tube Elbow |
| Size | 1/4" |
| Material | Carbon steel |
| I.D. | .17" |
| Tube O.D. | 9/16" |
| Finish | Dura-Kote |
| Construction Style | Crimp |
| FPT | 1/4" |
| Dash Size | -4 |
| Application | General Purpose Low, Medium, and High Pressure Hydraulic |
| Compatible Hoses | H104, H145, H145R, H190, H190H, H245, H245L, H280, H290, H290H, H290L, H345, H350, H400, H421, H425, H1777 (-04, -06, 08), H1776 (-04 thru -20), H1571 (-12 only), H6002 (-08, -12, -16), H6008 (-16 & -20), H6009 (-20 only), H9622 (-12, -16, -20), H265 |
| Old Part # | 06UA24 |
| Manufacture Part # | 06Z-A24 |
| Series | Z Series |
