CR321348
SKU CR321348

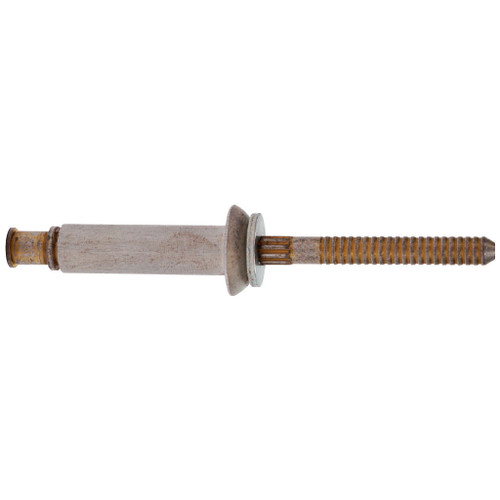

1/8" Universal Head Cherrymax Rivet, Grip Range 0.438 0.500

UPC:
31162201

California Residents: Prop 65 Warning
WARNING: Cancer and Reproductive Harm
www.p65warnings.ca.gov

Pkg Qty: 10

  • Fully serrated stem with break notch, shear-ring and integral grip adjustment cone
  • Driving Anvil to ensure a visible mechanical lock with each fastener installation
  • Separate, visible and inspectable locking collar that mechanically locks stem to the rivet sleeve
  • Rivet sleeve with recess in the head to receive the locking collar
  • Universal rounded head (MS20470) for applications where a protruding finish is desired
Type Cherrymax Rivet
Style Universal Head
Size 1/8"
Material Alloy Steel Stem/Aluminum Sleeve
Grip Range 0.438–0.500
Head Style Universal Head
Sleeve Material 5056 Aluminum
Stem Material 8740 Alloy Steel/Cadmium Plated, Type II Grade/Class 2
Lock Collar Material Corrosion Resistant Steel/Passivated
Shear Strength 50,000 psi
Hole Limits 0.129 – 0.139
Blind Clearance 0.355
Max Temp 250° F
NAS Part No. NAS9301B-4-08
