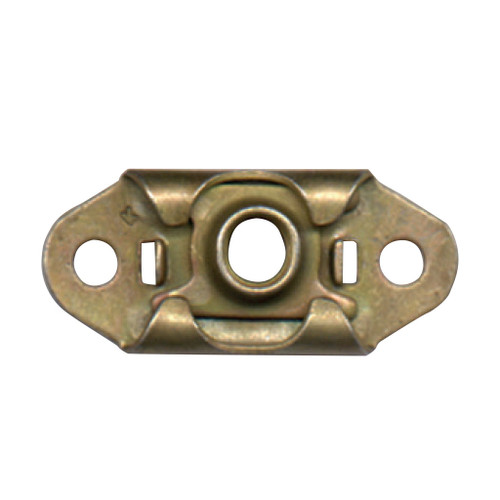

- Nut plates or anchor nuts are used in mounted applications where it is impractical to use hex nuts or where an attached nut is advantageous for ease of maintenance
- Ideally suited for blind mount applications
| Type | Nutplate |
| Style | Corner |
| Size | #10-32 |
| Material | Carbon Steel |
| Tensile Strength | 125,000 psi |
| Temp Range | 450° F |
| Finish Spec | QQ-P-416 Type II, Grade/Class 2 |
| Hardness | 49 HRC Max |
| Series | MS21055 |
| Thread Spec | 0.190–32 UNJF-3B |
| Lubricant | Dry Film |
| Length (Max) | 1.006 |
| Width (Max) | 0.505 |
| Rivet Hole Offset | 0.718 |
| Height | 0.250 |
| Rivet Hole Style | Countersunk |
| Axial Strength (Lbs) | 2460 |
