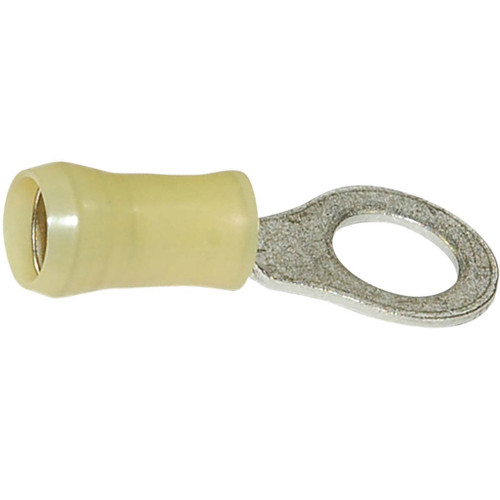

- PIDG (Pre-Insulated DIAMOND GRIP)
- Feature nylon insulation and a copper sleeve over the barrel to provide insulation support to wire to prevent the wire from fraying or breaking
| Type | PIDG |
| Style | Ring |
| AWG | 12-10 |
| Color | Yellow |
| Voltage | 600 VAC |
| Finish | Tin |
| Insulation | Nylon |
| Material | Copper |
| Stud Size | 5/16" |
| Temp Range | 105° C (221° F) |
| Mil-Spec | MS25036-113 |
| Length | 1.322 |
| Width | 0.531 |
| Throat Length | 0.468 |
| Effective Length | 1.054 |
| Material Thickness | 0.042 |
| Max Wire Insulation Dia. | 0.25 |
| Specifications | UL, CSA |
