- Tough, abrasion resistant, cross-linked insulation
- Self-extinguishing insulation will not support a flame in case of an engine fire
- Resistant to oil, grease acid, solvents, moisture & abrasion
- Meets or exceeds SAE & ATA Standards
- Temp Range: -40° - 221°F
- For 100' rolls replace the V suffix with a 1, example: HC18BK1
- For 500' rolls replace the V suffix with a 3, example: HC18BK3

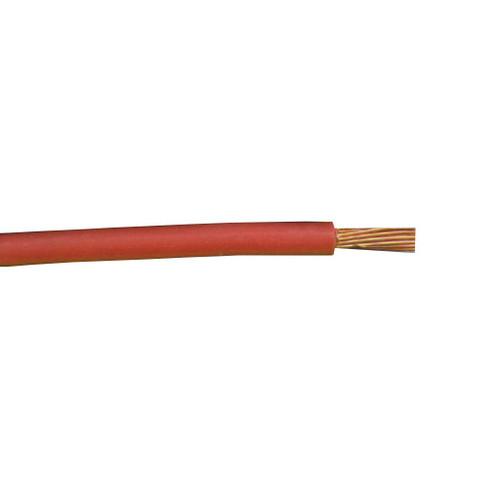

| Type | Automotive Hook-Up Wire |
| AWG | 12 |
| Color | Red |
| Voltage | 60 VDC |
| Insulation | Cross-linked Polyethlene |
| Material | Annealed Copper |
| Temp Range | -40° C to 125° C |
| Standards | SAE J-1128, MS-5919, ESB-MIL85-A, RoHS |
| Spool Length | 50' |
| Strands | 19x25 |
| Nominal Insulation Wall | .037 in. |
| Nominal O.D. | 0.162 in. |
