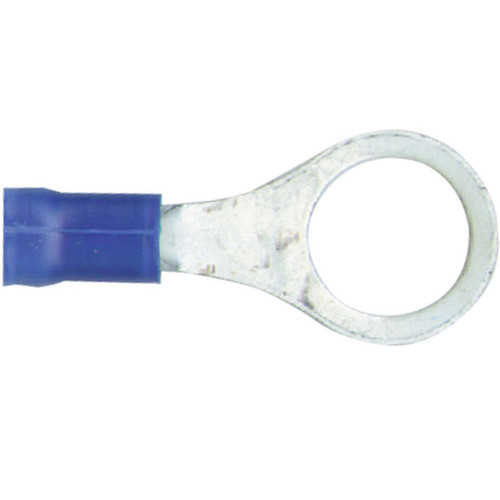

- Plasti-Grip Ring Terminals consist of precision formed metal wire barrel insulated with vinyl to provide maximum protection against abrasion
- Plasti-Grip terminals have a maximum operating temperature of 105 deg C (221 degF)
Type | Plasti-Grip |
Style | Ring |
AWG | 16-14 |
Color | Blue |
Voltage | 600 VAC |
Finish | Tin |
Material | Copper |
Stud Size | #8 |
Temp Range | 90° C |
Length | 0.871 |
Width | 0.343 |
Throat Length | 0.281 |
Effective Length | 0.697 |
Material Thickness | 0.033 |
Max Wire Insulation Dia. | 0.17 |
Specifications | UL,CSA |
