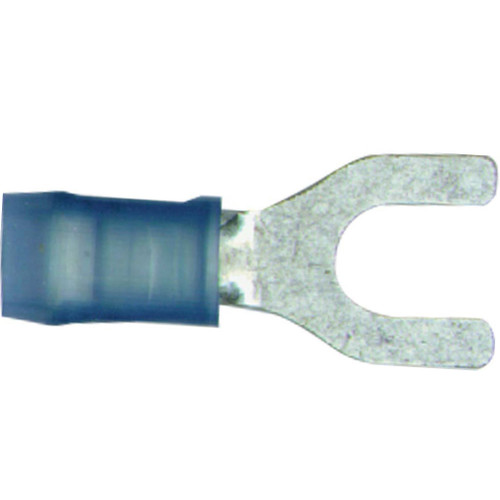

- PIDG (Pre-Insulated DIAMOND GRIP)
- Feature nylon insulation and a copper sleeve over the barrel to provide insulation support to wire to prevent the wire from fraying or breaking
| Type | PIDG |
| Style | Fork |
| AWG | 16-14 |
| Color | Blue |
| Voltage | 600 VAC |
| Insulation | Nylon |
| Material | Copper |
| Stud Size | #8 |
| Temp Range | 105° C (221° F) |
| Length | 0.753 |
| Width | 0.297 |
| Throat Length | 0.203 |
| Finish | Tin |
| Material Thickness | 0.033 |
| Max Wire Insulation Dia. | 0.17 |
| Specifications | UL,CSA |
| Barrel Type | Closed |
