- Used in general purpose electronic & electrical work
- They help reduce splicing & conserve panel space

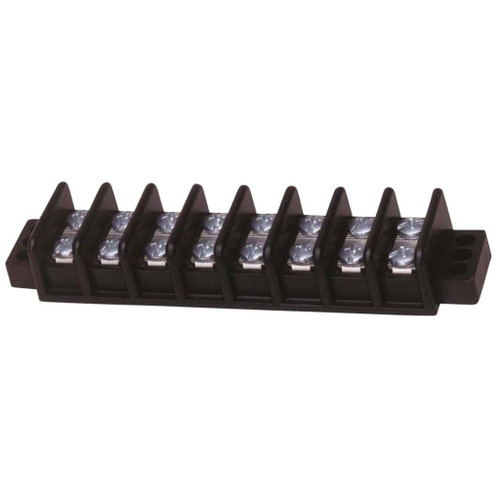

- Double row / barrier block, UL rated thermoplastic
- Tin plated brass connections with tin plated steel, Phillip/Slotted combo drive screws
| Type | Terminal Block |
| Style | Double Row |
| Color | Black |
| Temp Range | MIN -40° C (-40° F) MAX 130° C (266° F) |
| Amp Rating | 30 |
| Voltage | 300 VAC |
| Length | 9.50" |
| Width | .88" |
| Height | .25" |
| Poles | 20 |
| Screw Material | Zinc-plated Steel |
| Screw Size | #6-32 |
| Screw Head | Phillips/Slotted |
| Mounting Hole Dia. | #6 |
| Mounting Centers | 7.88" |
| Center Spacing | .375" |
| Specifications | UL File E62622/ CSA File 47235; IEC Compliance; CE Certified |
