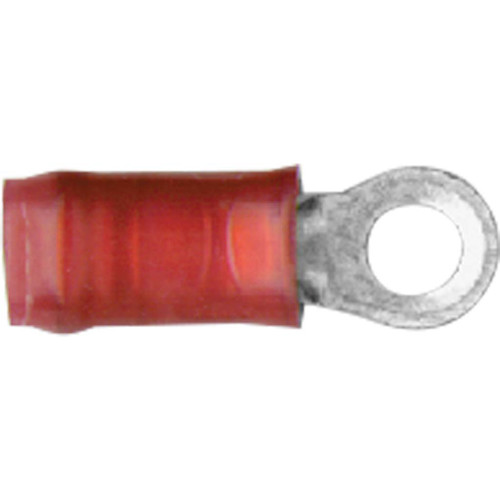

- PIDG (Pre-Insulated DIAMOND GRIP)
- Feature nylon insulation and a copper sleeve over the barrel to provide insulation support to wire to prevent the wire from fraying or breaking
| Type | PIDG |
| Style | Ring |
| AWG | 22-16 |
| Color | Red |
| Voltage | 600 VAC |
| Insulation | Nylon |
| Material | Copper |
| Stud Size | 5/16" |
| Temp Range | 105° C (221° F) |
| Mil-Spec | MS25036-104 |
| Length | 1.078 |
| Width | 0.469 |
| Throat Length | 0.437 |
| Finish | Tin |
| Material Thickness | 0.033 |
| Max Wire Insulation Dia. | 0.14 |
| Specifications | UL, CSA |
