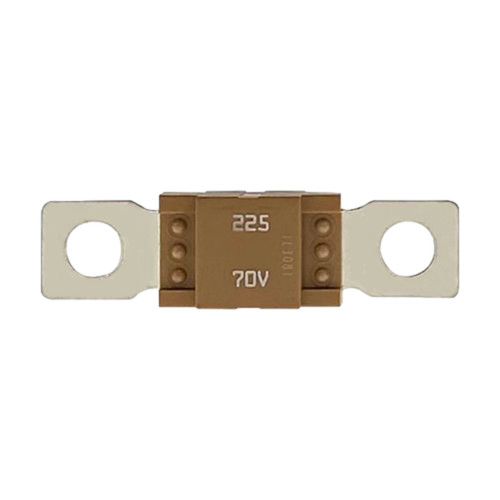

- Used in selected late-model vehicles and designed for high current applications
- These fast-acting fuses feature bolt-on blade terminals with a plastic body
Tech Data (PDF)
| Type | High current stud-mount fuse |
| Style | High Current |
| Color | Brown |
| Voltage | 70 VDC |
| Amps | 225 |
| Material | Thermoplastic housing, Copper terminal |
| Element | Single |
| Series | AMG |
| Amperage Rating | 80 – 500A |
| Fuse Indicator | Nonindicating |
| Connection | Bolted Blade End x Bolted Blade End |
| Response Time | 100 hr min at 100%, 4 hr min at 110%, 90 sec min at 150%, 3600 sec max at 150%, 5 sec min at 200%, 100 sec min at 200% |
| Interrupt Rating | 2,500 A @ 70 Vdc |
| Mounting Method | M8 or 5/16-18 or less studs on 2.00 in (50.8mm) centers |
| Application | Automotive Circuits |
| Compliances | RoHS Compliant |
