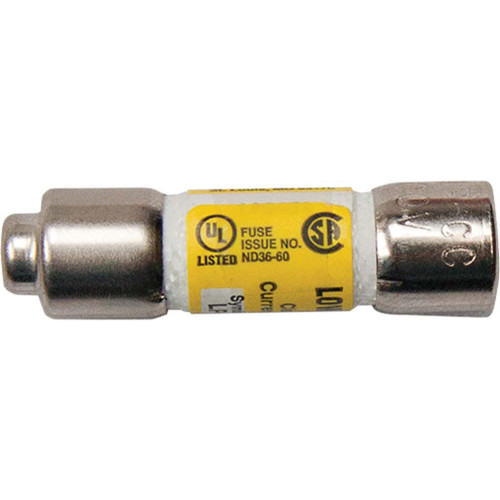

- Class G time-delay low-voltage, branch circuited rated fuses
- Fast-acting fuses (500mA to 6A), time-delay fuses (7A to 60A)
| Type | Cartidge |
| Style | Time-Delay |
| Voltage | 480 VAC |
| Amps | 25 |
| Material | Fiber |
| Element | Single |
| Length | 1.62" |
| Series | SC |
| Industry No. | SC-25 |
| Body Style | Cylindrical |
| Interrupt Rating | 100kA |
| Dia. | .41" |
| Standards | CE, Std. 248-5, Class G, UL Listed, Guide JDDZ, File E4273, CSA Certified, Class 1422-01, File 53787 |
| Application | Fusible Branch Panelboards, HVAC Branch Circuit Protection |
| Indicating / Nonindicating | Nonindicating |
| Class | G |
