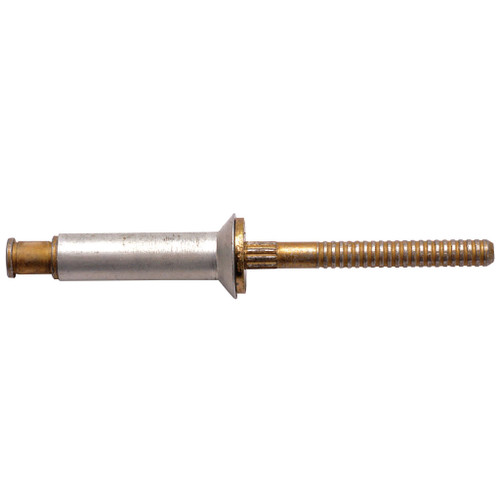

- Fully serrated stem with break notch, shear-ring and integral grip adjustment cone
- Driving Anvil to ensure a visible mechanical lock with each fastener installation
- Separate, visible and inspectable locking collar that mechanically locks stem to the rivet sleeve
- Rivet sleeve with recess in the head to receive the locking collar
- Universal rounded head (MS20470) for applications where a protruding finish is desired
Type | Cherrymax Rivet |
Style | Universal Head |
Size | 3/16" |
Material | Alloy Steel Stem/Aluminum Sleeve |
Grip Range | 0.188–0.250 |
Head Style | Universal Head |
Sleeve Material | 5056 Aluminum |
Stem Material | 8740 Alloy Steel/Cadmium Plated, Type II Grade/Class 2 |
Lock Collar Material | Corrosion Resistant Steel/Passivated |
Shear Strength | 50,000 psi |
Hole Limits | 0.192 – 0.201 |
Blind Clearance | 0.415 |
Max Temp | 250° F |
NAS Part No. | NAS9301B-6-04 |
