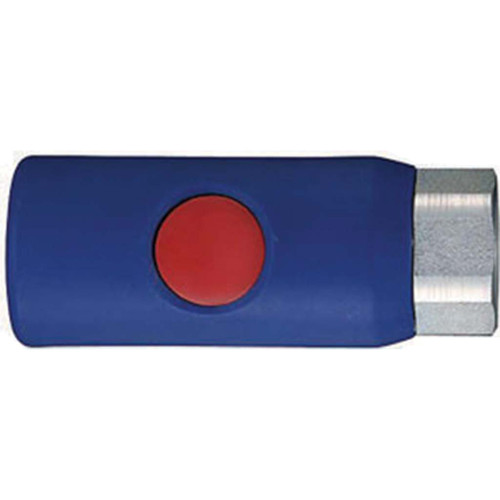

- Prevost standard push button couplers have a body shell made of fiberglass filled Nylon 66
- To engage, double click; the first click locks coupler and plug whereas the second click engages the air pressure
- To disconnect, push button twice; the first push relieves pressure and the second push allows plug and coupler to be disengaged
| Type | Coupler |
| Style | Push Button |
| Size | 1/4" |
| Material | Composite with Metal Button |
| Thread Type | Female |
| Color | Blue Body.Red Button |
| Interchange | Tru-Flate |
| Body Size | 3/8" |
| Max Air Pressure | 232 psi |
| Air Flow | DP 10 psi = 71 SCFM @ 100 psi |
| Rubber Seal | Buna-N |
