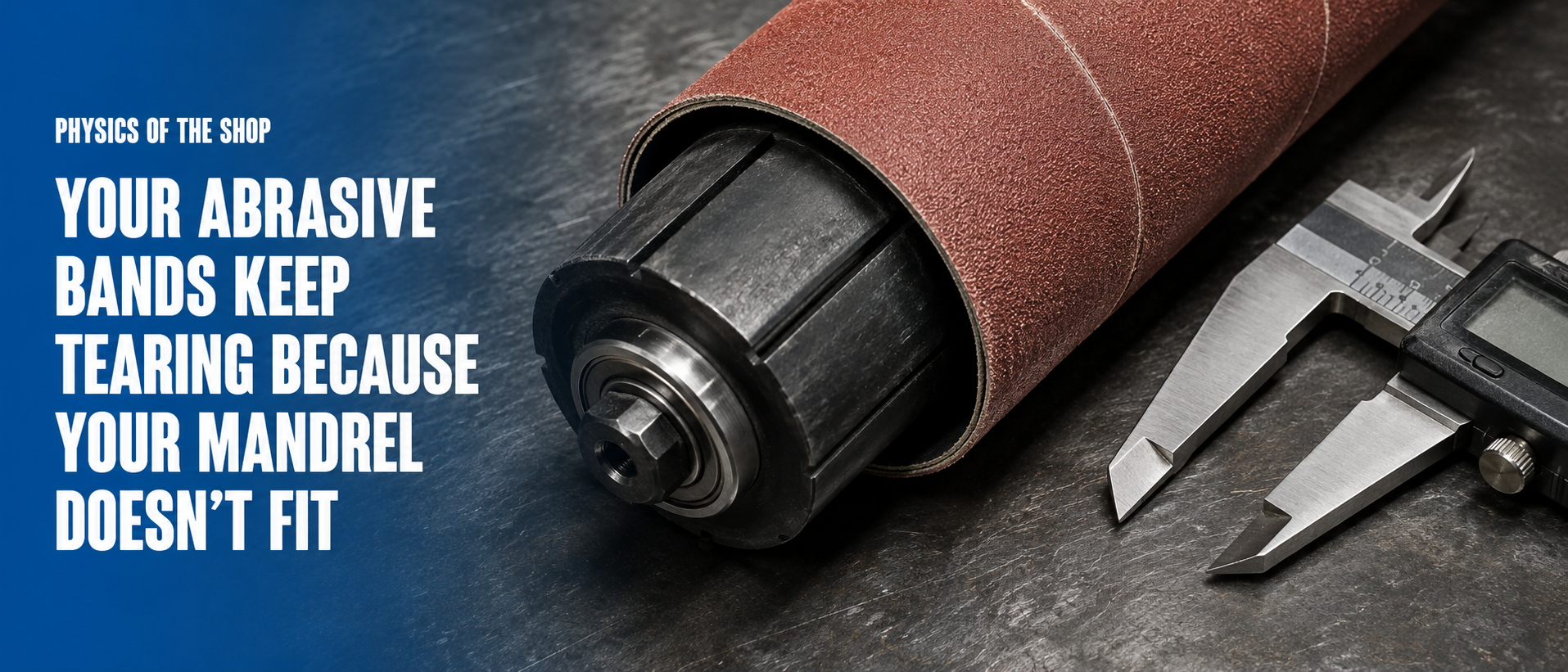

Your Abrasive Bands Keep Tearing Because Your Mandrel Doesn't Fit

The bands aren't defective. Your mandrel and drum sizing are wrong.

What's Happening When the Band Tears

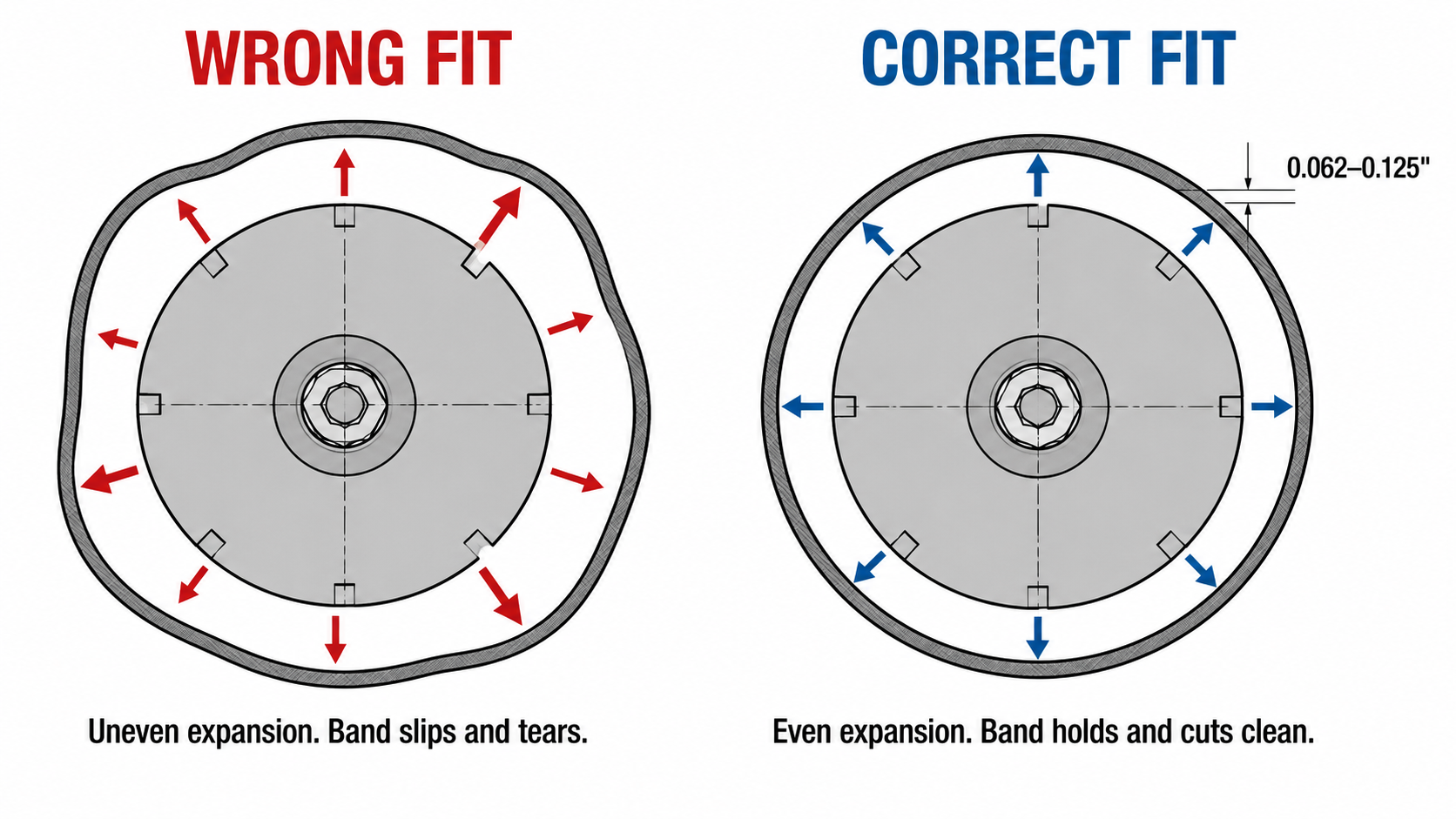

Spiral bands and sanding drums work as a matched system. When you tighten the mandrel screw, the rubber drum expands outward against the band's inner surface. That expansion has to be uniform — equal pressure around the entire circumference creates even tension across the cutting surface.

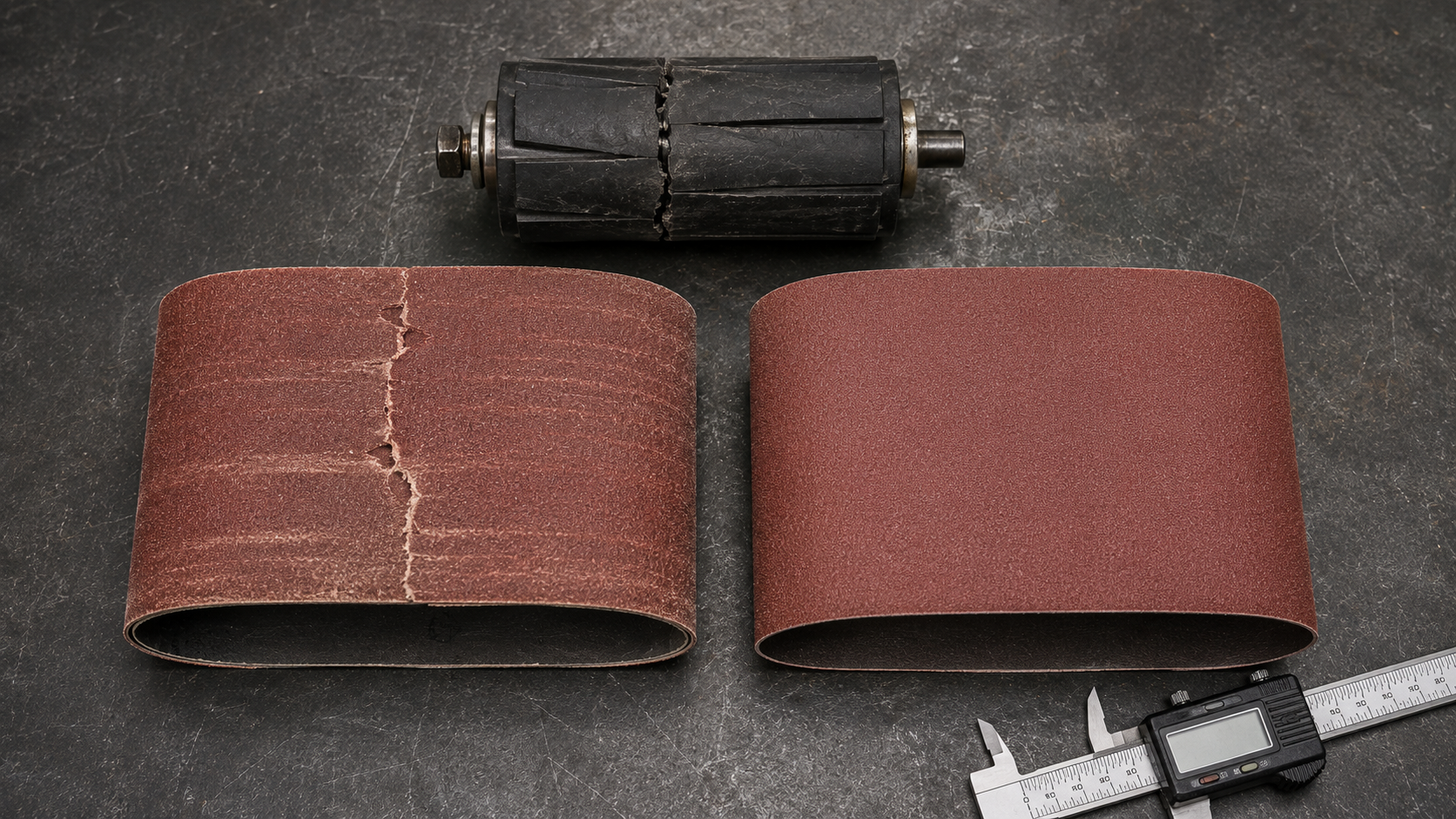

With mismatched components, expansion becomes irregular. High-pressure zones wear the band thin. Low-pressure areas let it slip and generate heat. The band chatters against the workpiece, leaves spiral marks, and fails at the seam long before the abrasive is spent.

The grit isn't worn out. The band is failing from mechanical stress, not abrasion.

The Measurement That Fixes It

Start with the band's inner diameter. Most spiral bands run 1/2 inch, 1 inch, 1-1/2 inches, or 2 inches.

Your drum's unexpanded diameter should measure 0.062 to 0.125 inches smaller than the band. This gives proper interference fit when the drum expands under tension.

For a 1-inch band, use a drum that measures 0.875 to 0.938 inches relaxed. Too small and the band slides. Too large and it stretches past its elastic limit — that's where seam tears come from.

Check the mandrel shaft next. Standard sizes are 1/4 inch, 3/8 inch, and 1/2 inch. The drum bore must match precisely. Any wobble transfers directly to the band as uneven load.

How to Install It Right

Slide the band over the relaxed drum. Position the seam at the drum's centerline — not offset to one side.

Thread the assembly onto the mandrel with light finger pressure only. Don't force it.

Tighten the mandrel screw in quarter turns, checking band position between adjustments. Stop when the band feels snug but still rotates freely by hand.

Over-tightening stretches the rubber beyond recovery. Under-tightening lets the band slip and overheat. Both kill the band faster than the abrasive work would.

What to Stock and Replace

Keep matched sets — don't mix drum manufacturers. Durometer and expansion rates vary between suppliers, and a drum from one brand with a band from another is a fit you haven't actually measured.

Replace drums when the rubber shows cracking or permanent deformation. A worn drum costs far less to replace than the bands it destroys. Track the combination that works for each application and reorder by spec, not by habit.
