- DOT Air Brake Copper Tubing Sleeves are made of CA360 Brass.
- Copper Tubing fittings have the advantage of easy assembly - no tube preparation or flaring required.
- May be used with nylon tubing by replacing long nut and spherical sleeve with insert, rigid sleeve and nut.
- Meets specifications and standards of SAE and DOT

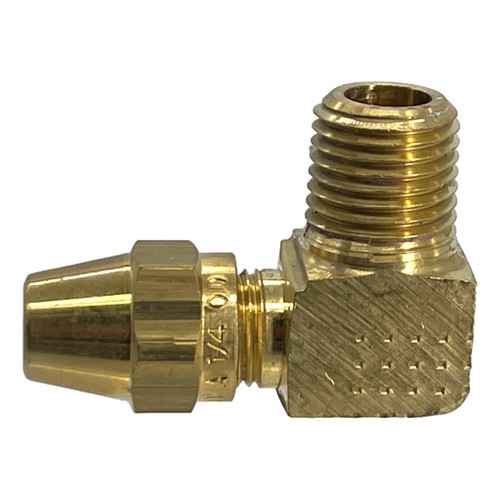

Type | D.O.T. Air Brake Copper Tubing |
Style | 90° Male Elbow |
Size | 1/2" x 1/4" |
Material | CA360 Brass |
Tube O.D. | 1/2" |
MPT | 1/4" |
Pressure | 150 |
Temp Range | -65° F to +250° F |
Standards | SAE and DOT |
