Your grinding wheel still spins. It still has material. But that job that used to take 20 minutes now takes 45. You're leaning into the grinder harder than you were last month.

The wheel died two jobs ago. You just don't have the criteria to know when.

What's Killing Your Cutting Speed

Surface speed determines how aggressively a grinding wheel cuts. It's set by wheel diameter and RPM. When your wheel loses 10–15% of its original diameter, surface speed drops enough to change how the wheel behaves — even though the RPM stays the same.

On a 4.5-inch wheel, losing half an inch drops surface speed by roughly 22%. The abrasive is moving slower than it was designed to. So you press harder to compensate. Pressing harder generates heat instead of cut. Heat glazes the wheel face, burns the workpiece, and changes the material properties in the heat-affected zone.

You're not grinding anymore. You're rubbing.

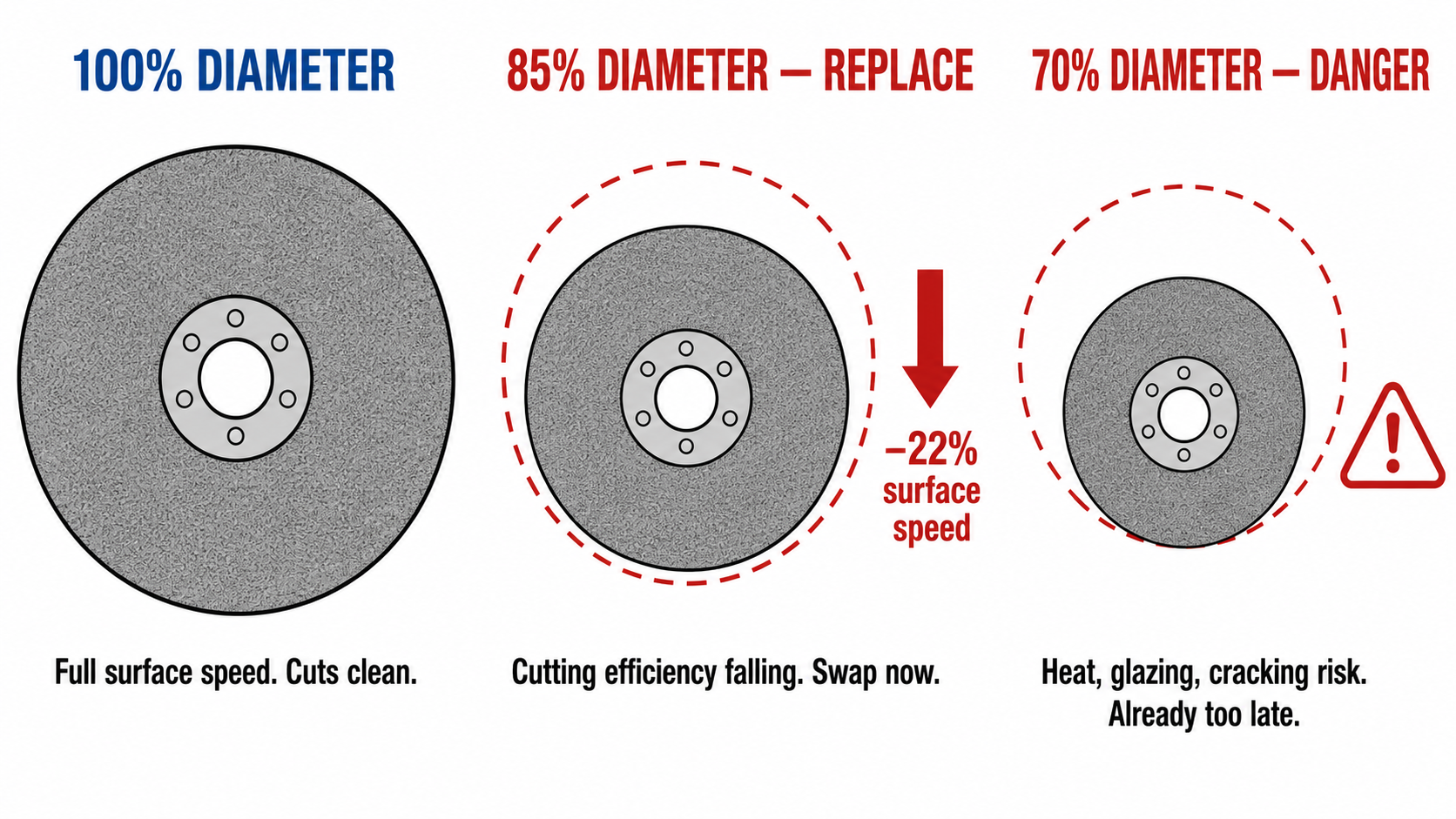

Three-panel diagram showing grinding wheel at 100%, 85%, and 70% of original diameter with corresponding performance and safety labels — Left to right: full speed at 100%, replacement threshold at 85% (−22% surface speed), danger zone at 70%. All three share a baseline so the size reduction is immediately visible.

The Four Signs the Wheel Is Done

Glazing is the most common and most missed. The wheel face develops a smooth, shiny surface where abrasive grains have been buried under worn bond material. It stops cutting and starts polishing. Jobs take longer. Heat builds fast.

Loading happens on soft materials — aluminum, brass, soft steel. The spaces between abrasive grains fill with workpiece material. The wheel loses bite entirely and generates friction heat with almost no material removal.

Cracks mean stop immediately. Hairline fractures in the bond structure spread under load. Radial cracks from the center hole and circumferential cracks around the rim are both immediate replacement triggers. A cracked wheel at 10,000 RPM doesn't warn you before it fails.

Diameter reduction is the easiest to track and the most ignored. Mark your wheels at installation with the original diameter. Replace at 85% of that number, not when the wheel looks obviously done.

How to Track It Without Guessing

Time your standard cuts. When a pass that took 30 seconds takes 60, the wheel is done regardless of how much material is left. Don't compensate with pressure — that's how you burn parts and crack wheels.

Watch the spark pattern. A sharp wheel throws long, bright sparks. A dead wheel produces short, dull sparks or generates excessive heat with almost no spark trail at all.

Feel for vibration. Smooth grinding operation becomes choppy when wheels wear unevenly or develop internal stress. If the grinder shakes more than it did with a new wheel, pull it.

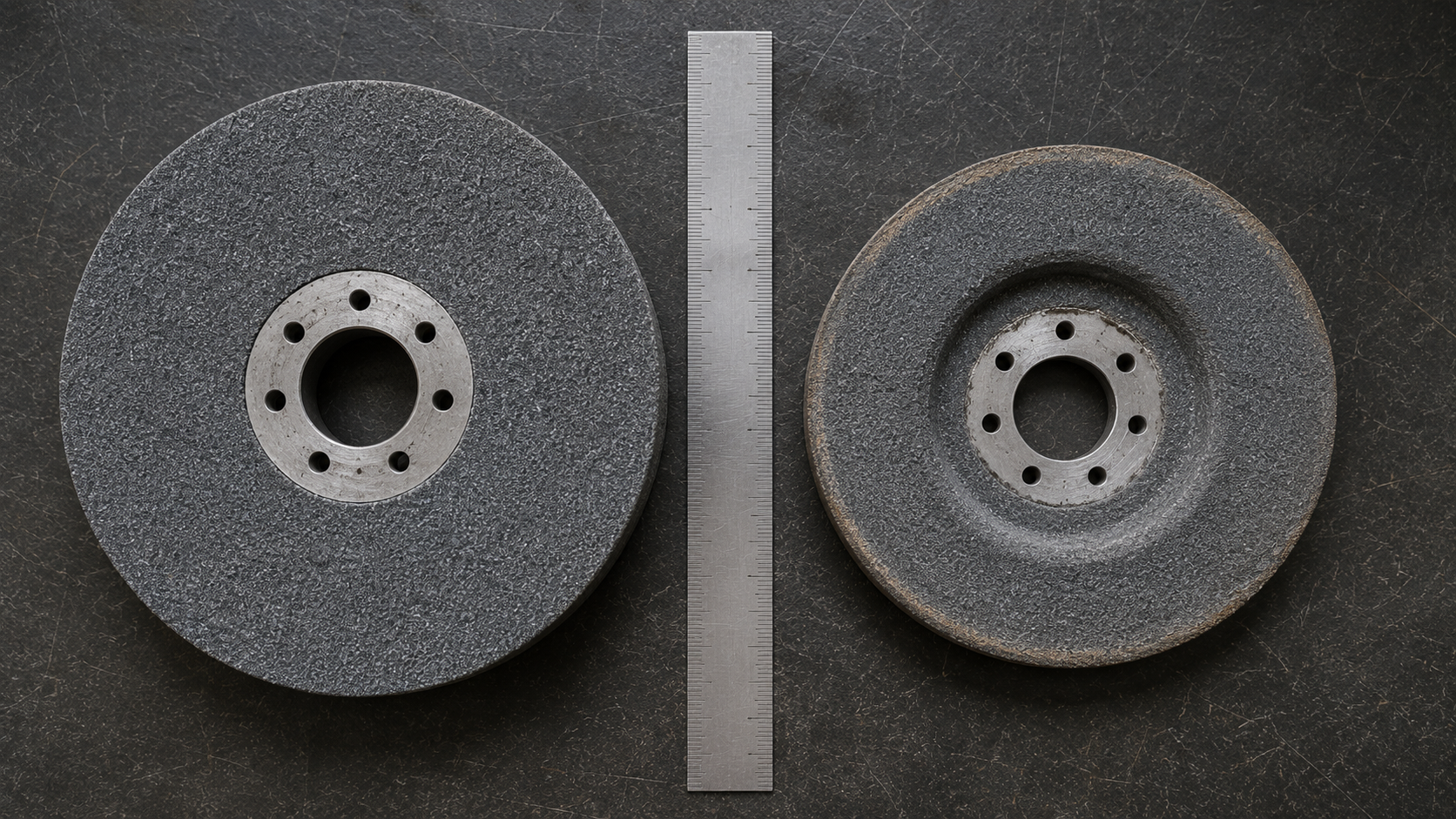

Overhead view of two grinding wheels side by side on dark steel workbench — full thickness new wheel on left, significantly worn wheel on right, metal ruler between them — Same wheel spec, different service life. The thickness difference is visible in 30 seconds with a ruler — the check most shops skip entirely.

The Bottom Line

A worn wheel doesn't fail all at once — it just costs you more time on every pass until you replace it. 85% diameter is the line. Mark your wheels, time your cuts, and don't let a used-up wheel double your labor.
