Stainless_Finishing

You switched to ceramic. You spent more per disc. The discs are still loading up and dying before the job is done. The grain isn't the problem anymore — you are.

Ceramic and zirconia grains solve the work hardening and heat retention problems that kill standard abrasives on stainless. But grain selection is only half the equation. Angle, pressure, and pass speed each generate heat independently. Get any one of them wrong and you're back to the same problem with a more expensive disc.

Angle: Where Most of the Heat Comes From

The most common mistake is grinding stainless at the same angle you'd use on carbon steel — 20 to 30 degrees. At that angle, the disc is concentrating its contact on a narrow band of flaps. Less contact area means more heat per square inch, more localized pressure, and faster grain breakdown.

On stainless, flatten your angle to 5 to 15 degrees. More flap surface contacts the metal, pressure distributes across a wider area, and the heat that would have cooked one spot now spreads across the disc. This is why flap discs outperform grinding wheels on stainless to begin with — the flap design is built to take advantage of that shallow contact. You have to actually use it.

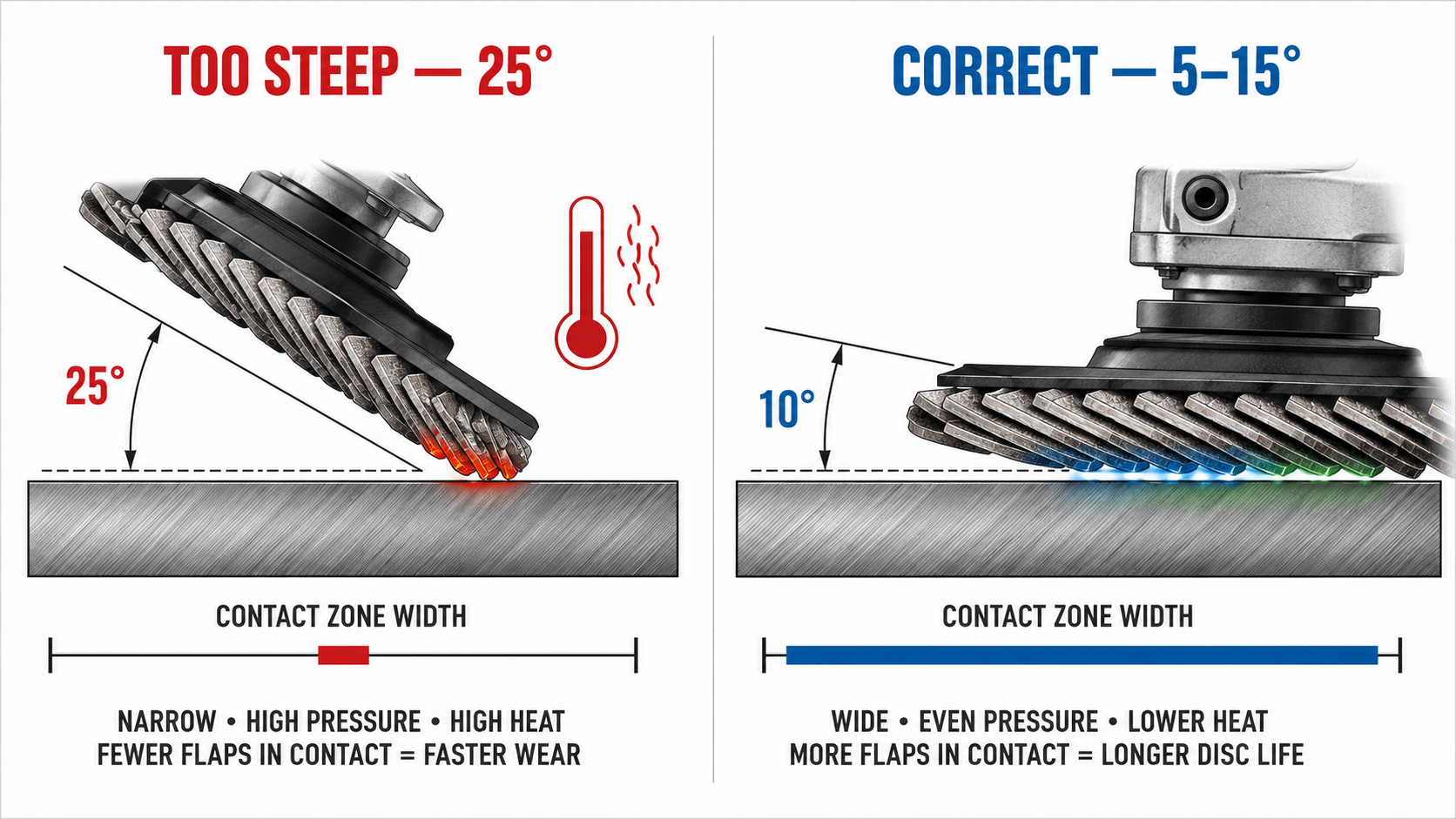

Diagram comparing steep and shallow flap disc contact angles on stainless steel — At 25 degrees (left), heat concentrates in a narrow band. At 10 degrees (right), contact spreads across more flap surface — less heat per square inch, longer disc life.

Pressure: Let the Disc Work

Stainless pushes back. It work-hardens as you grind it, and the natural response is to lean harder into the disc. That's exactly the wrong move.

Heavy pressure on stainless does two things: it accelerates grain breakdown by overloading the abrasive before it can self-sharpen, and it drives up surface temperature fast. Ceramic grains are designed to micro-fracture under moderate pressure — that's how they stay sharp. Crush them under too much load and they skip the fracture step and just collapse. You end up with a loaded, glazed disc that's generating friction instead of cutting.

The check is simple. If you're working hard to push through the material, you're pressing too hard. A sharp disc on stainless at the right angle should feel like it's pulling itself into the work. If it doesn't, the disc may already be loaded — or the angle is off.

Pass Speed: Keep Moving

Stainless doesn't conduct heat away from the grinding zone the way carbon steel does. Dwell time — how long the disc stays in one spot — determines how much heat builds up in the surface. A slow, grinding pass lets that heat stack. Chromium carbides begin forming around 800°F — that's the threshold where corrosion resistance starts to degrade and discoloration sets in. A consistent, steady traversal keeps any single point below that threshold.

This isn't about rushing the job. It's about not stopping. Pause mid-pass to reposition your grip and you've already let the temperature climb. Plan your passes before you start so you're moving continuously from one end of the workpiece to the other.

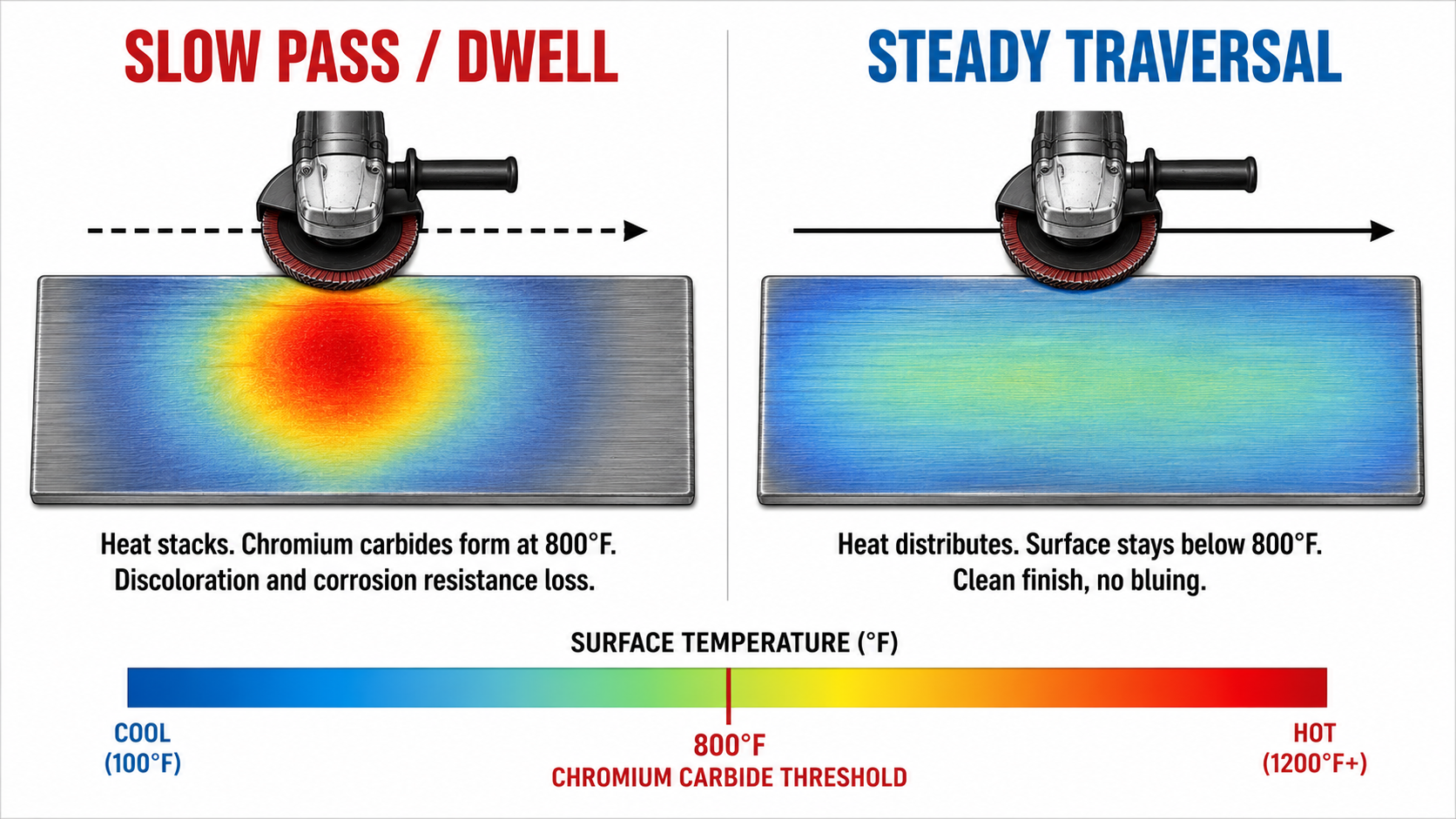

Heat map infographic comparing slow dwell and steady traversal while grinding stainless steel — Slow dwell (left) concentrates heat and risks bluing. Consistent traversal (right) distributes the same energy across the surface — cleaner finish, no discoloration.

The Technique Cheat Sheet

Variable	Wrong on Stainless	Right on Stainless	Why It Matters
Angle	20–30°	5–15°	Wider contact = lower heat per sq. in.
Pressure	Lean hard, force the cut	Light, consistent — let the disc pull	Overload kills ceramic grain before it can resharpen
Pass Speed	Slow dwell, pause mid-pass	Steady traversal, no stopping	Dwell time = heat buildup = bluing and disc loading

The Bottom Line

Ceramic grain gives you the right tool. Shallow angle, light pressure, and a steady hand are what make it work. All three, every pass.
