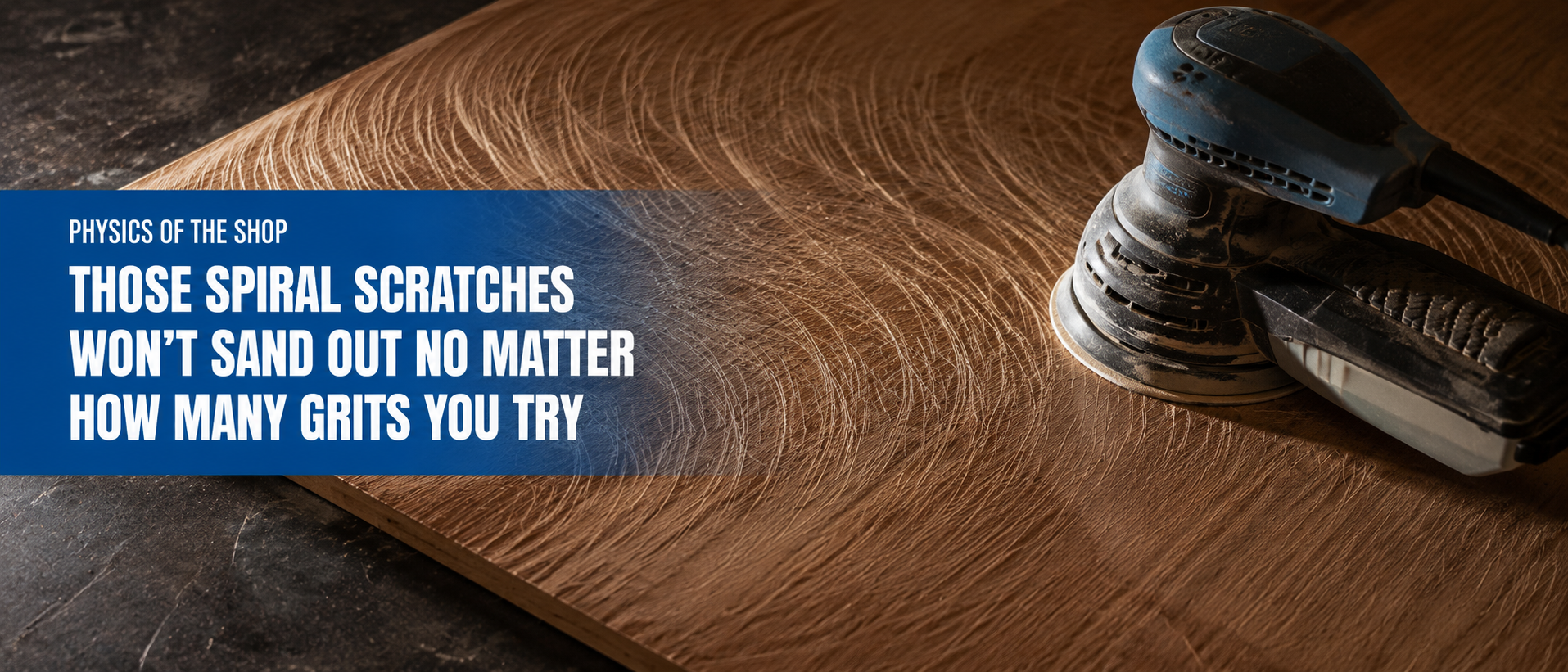

Wood surface with spiral pigtail scratches under raking light, random orbital sander resting on surface
Physics of the Shop

Those Spiral Scratches Won't Sand Out No Matter How Many Grits You Try

You worked through 120, 180, and 220 grit. The spiral scratches are still there. Each finer grit should have erased what came before. Instead they're permanent. You're stripping finish and starting over.

Pigtails aren't an abrasive problem. They're physics working against you.

Why Your Sander Creates Them

Random orbital sanders combine two motions simultaneously: the pad spins while tracing small circles. At 12,000 RPM with a 3/16-inch offset, this creates a genuinely random scratch pattern — each pass cuts at a slightly different angle, so scratches from one direction get cut away by the next.

That randomness is the whole point. Three things destroy it.

Pressure kills the orbital motion. Press down with more than 2–3 pounds of force and you lock the pad's circular travel. It still spins, but it stops moving in circles. Now you're cutting one consistent arc into the wood fiber — deep, repeating, and invisible until the stain goes on.

Speed burns the fiber. Variable speed sanders at maximum RPM generate enough heat to scorch wood fibers at the surface. Burned fibers don't cut cleanly. They compress and spring back, leaving raised ridges that catch every subsequent grit instead of being removed by it.

Worn pads concentrate load. A pad with compressed backing creates high spots. Those spots dig deeper while surrounding areas barely contact the surface. The result is inconsistent scratch depth — some cuts shallow, some deep — and no amount of fine grit levels it out.

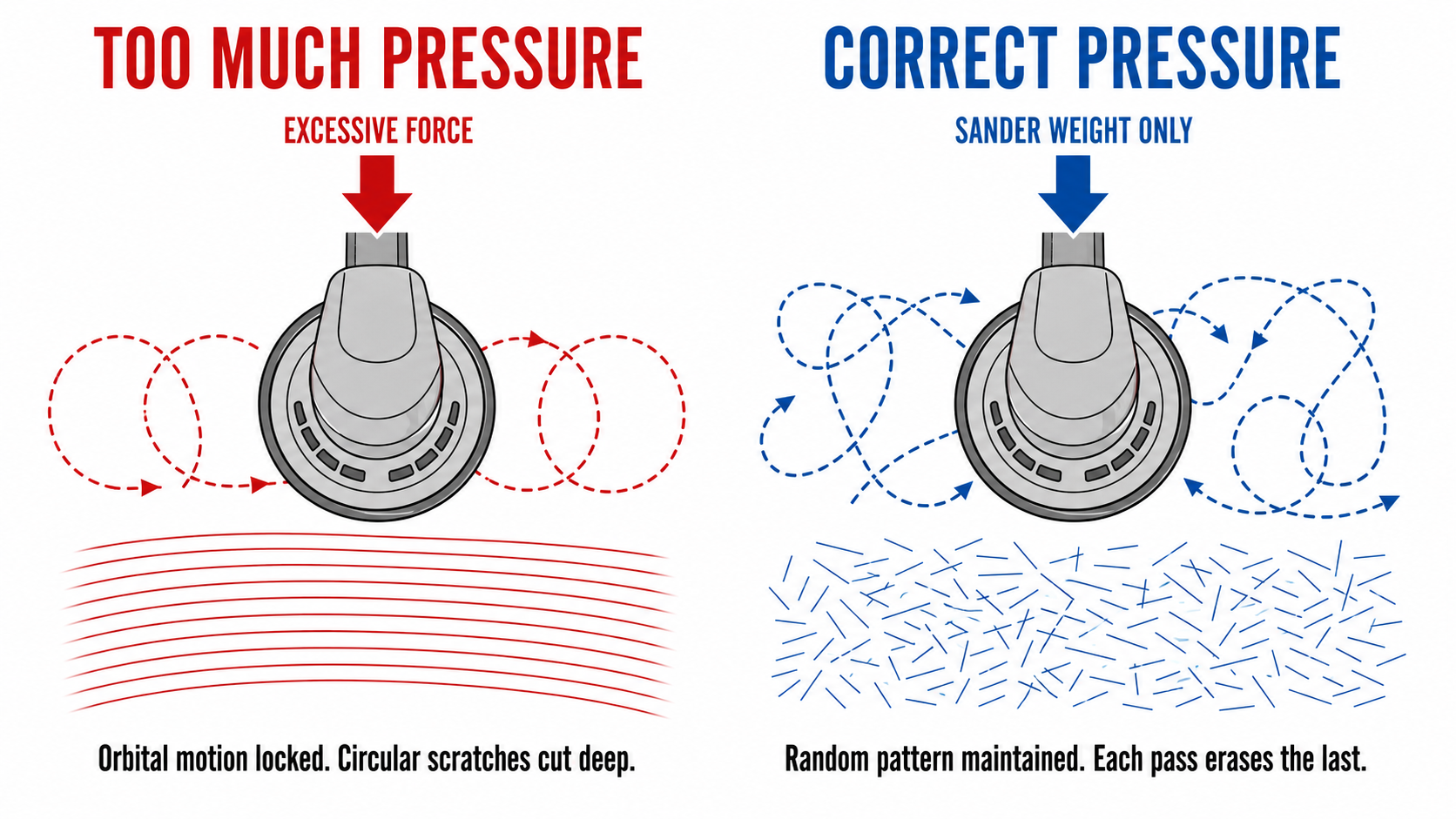

Two-panel diagram comparing locked circular sander motion causing spiral scratches versus correct random orbital pattern
Left: excessive pressure locks the orbital motion — same arc, every pass. Right: sander weight only — random pattern maintained, each pass erases the last.

How to Stop Making Them

Let the sander's weight do the work. A standard 5-inch random orbital weighs 2.5–3 pounds. That's your downward force. Your hands steer — they don't push.

Run at 60–70% of maximum speed. Slower removal rate, no fiber burn, scratch patterns stay random.

Replace backing pads every 40–50 hours of use. A worn pad costs you far more in rework time than the pad itself is worth. Mark the install date and track it.

Grit Progression That Actually Works

Never skip more than one grit level. 80 to 150 leaves scratches too deep for 150 to remove — you're just refining a problem, not solving it. Stick to 80–120–180–220.

Inspect under raking light between every grit change. Scratches that are invisible under overhead lighting show immediately when lit from the side. If the previous grit's marks are still there, keep going — don't move finer until they're gone.

Keep the sander moving. More than 2–3 seconds in one spot and you're building heat and pressure right where you don't want it.

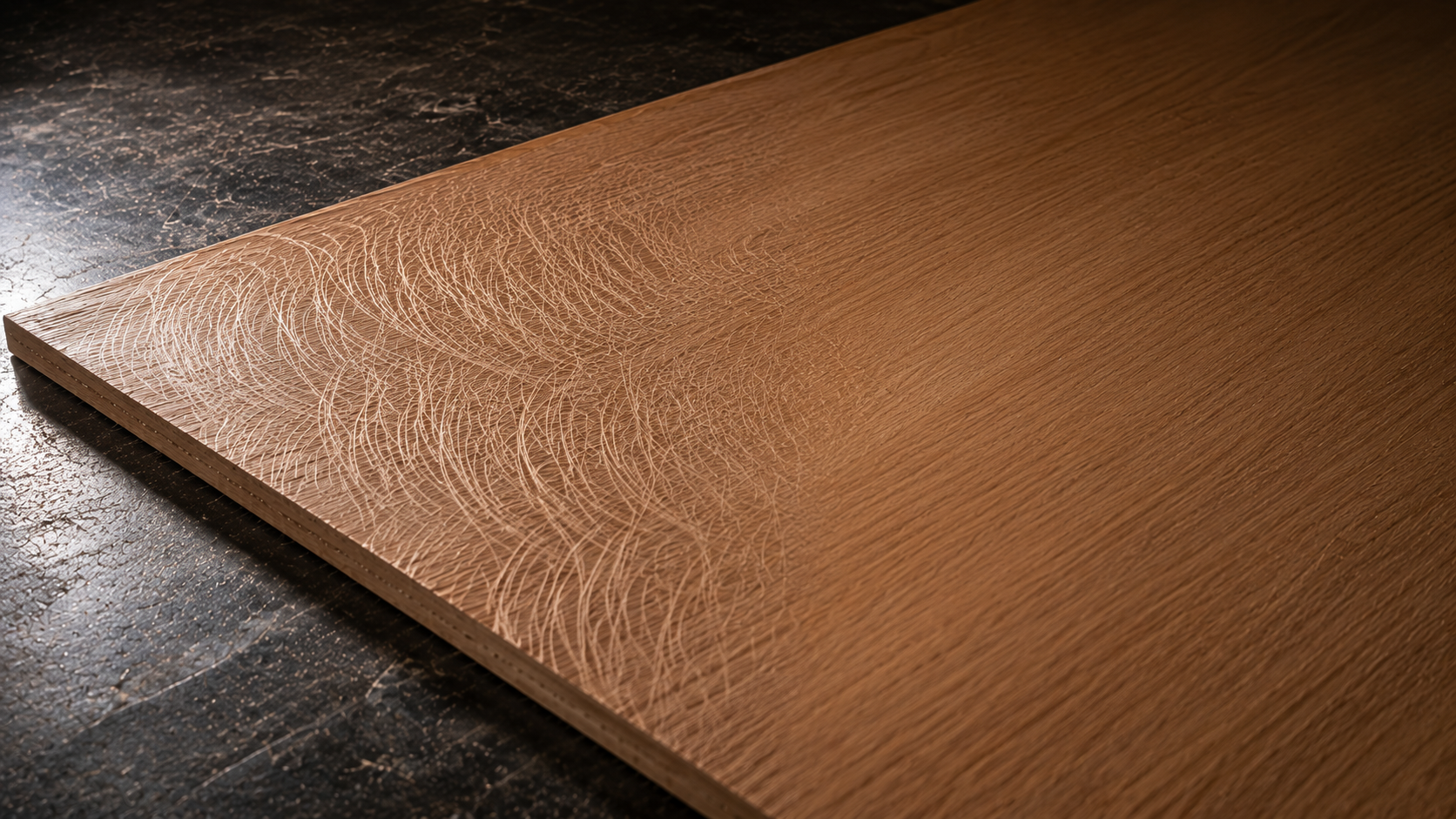

Wood panel under raking light showing spiral scratches on left half transitioning to smooth scratch-free surface on right half
Same panel, same wood. Raking light makes the difference between controlled and uncontrolled scratch patterns immediately visible.
The Bottom Line

Pigtails mean your sander stopped being random. Light pressure, 70% speed, fresh pad, and proper grit progression — fix any one of those and you'll see it. Fix all four and the scratches stop.
