Your-Grinding-Discs-Keep-Clogging-and-Burning-Through-Metal

You grab a fresh disc, fire up the grinder, and twenty minutes later it's loaded with metal or burning through your workpiece. The disc you planned to use all afternoon is done before lunch.

This isn't a quality problem. It's a chemistry problem.

Why Your Grain Type Is the Whole Game

Most shops run aluminum oxide on everything. It works fine on mild steel — contact temperatures in that application run around 1,800°F, and aluminum oxide holds together up to 2,072°F. That's a workable margin.

Stainless steel blows that margin apart. Contact temperatures on stainless regularly hit 2,400°F. At that point, aluminum oxide grains don't wear — they shatter into powder. The disc loads immediately, stops cutting, and burns the surface instead. That's not a worn disc. That's the wrong grain for the material.

Silicon carbide handles temperatures up to 4,000°F before breaking down. Its grains are sharp and friable — they fracture in a controlled way under heat and pressure, continuously exposing fresh cutting edges. That's why it cuts stainless, titanium, and non-ferrous metals without loading.

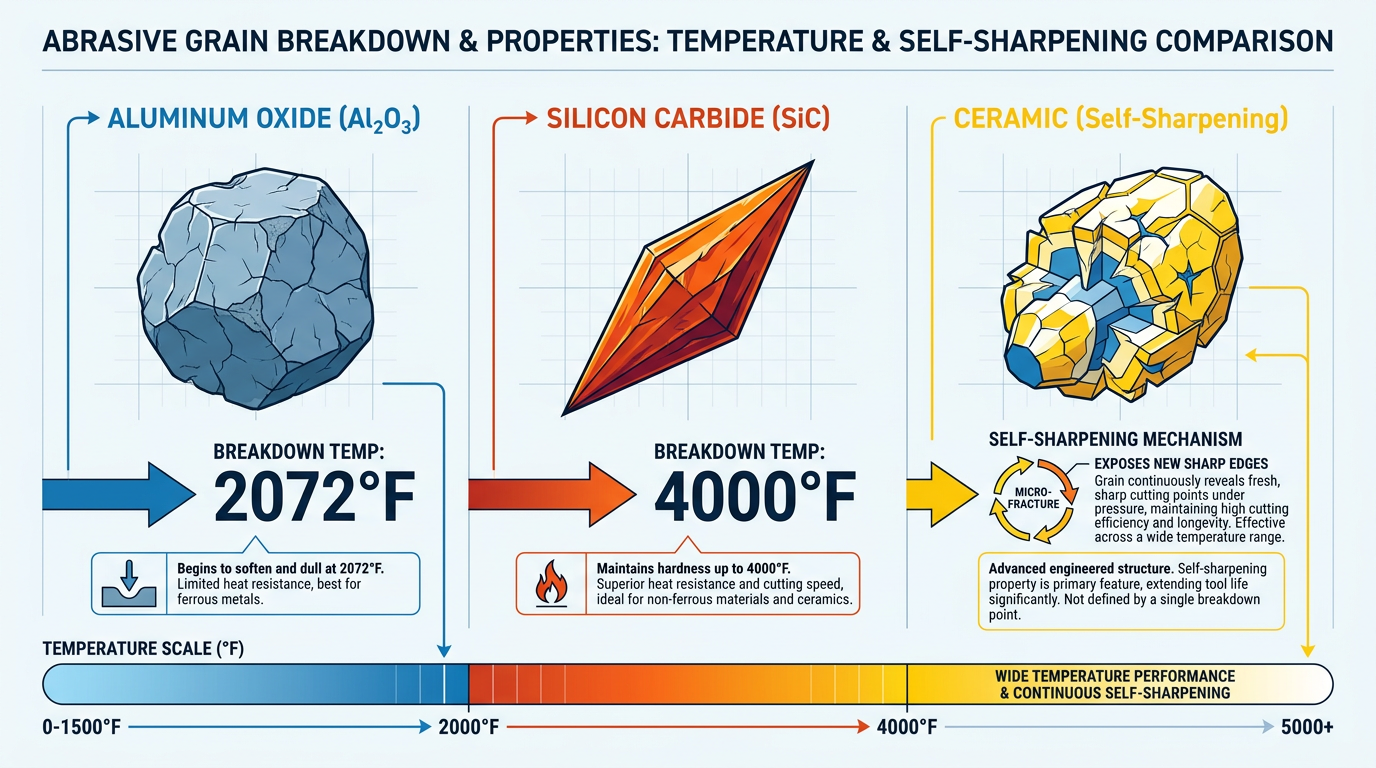

Infographic comparing abrasive grain breakdown temperatures: aluminum oxide at 2,072°F, silicon carbide at 4,000°F, and ceramic self-sharpening properties — Grain breakdown temperature determines where each abrasive type fails. Matching grain to material keeps the disc cutting instead of loading.

Ceramic grains work differently again. They self-sharpen through microcrystalline fracturing — as one cutting edge dulls, the grain structure breaks to reveal a new one underneath. A ceramic disc removes roughly 40% more material than a comparable aluminum oxide disc before it's spent. The higher cost per disc disappears when you track parts completed, not discs consumed.

Grit Selection and the One-Third Rule

Jumping grits too aggressively is the other thing that kills efficiency and discs. Each successive grit should be no more than one-third finer than the previous. Skip from 36 to 120 and you'll spend more time removing deep scratches from the coarse pass than the coarse pass saved you.

For weld grinding on plate steel: start with 36-grit ceramic on fiber backing for fast crown removal, follow with 80-grit for blending, finish with 120-grit for surface prep. Three steps, each doing the job it's sized for.

For stainless: silicon carbide throughout. 60-grit removes material without work hardening the surface. 120-grit smooths without smearing.

Flap Discs Solve the Progression Problem

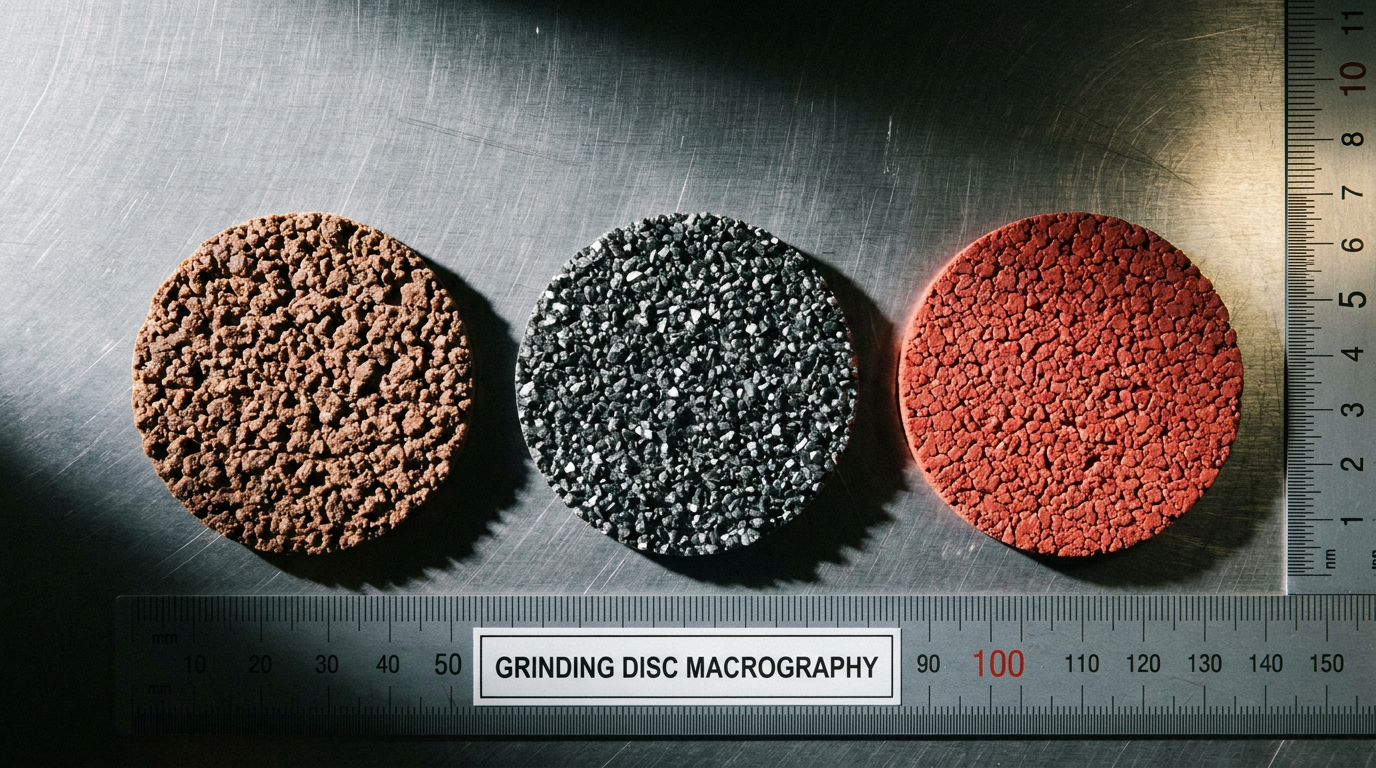

Close-up macro comparison of three grinding disc grain structures: aluminum oxide (brown), silicon carbide (dark gray), and ceramic (red) on a brushed steel surface — Left to right: aluminum oxide, silicon carbide, ceramic. Grain structure under magnification shows why each behaves differently under heat and pressure.

A flap disc wears to finer grits automatically — the outer flaps cut aggressively, the inner flaps finish. You get multiple stages in one disc without stopping to change. Ceramic flap discs last roughly three times longer than aluminum oxide versions on steel fabrication. On high-volume work, that math adds up fast.

The Bottom Line

Match the grain to the material temperature. Aluminum oxide for mild steel. Silicon carbide for stainless, titanium, and non-ferrous. Ceramic where you need maximum material removal and disc life. Wrong grain doesn't just wear faster — it ruins the surface and wastes the labor that went into the setup.
