- High-strength lightweight composite material is up to 50% lighter than Alkon brass D.O.T. fittings
- D.O.T. Approved - Alkon meets D.O.T. FMVSS 571.106 and SAE J1131, J2494-1 & J2494-3 air brake performance requirements
- Easy Release: Deep gripping teeth prevent accidental detachment during operation, yet release effortlessly for hassle-free maintenance
- Leak Free: Squeeze between the seal and tubing surface prevents leaks during operation, reducing rework, troubleshooting, and downtime
- Tight Bend Radius: Floating support enables sharper routing angles, reducing installation time and lowering labor costs
- Bias Cut: Supports angled cuts beyond standard limits, enabling faster tube cutting and minimizing errors that could cause leaks
- Full System Compatibility: Complete your full system design with Alkon products for trusted, reliable performance
| Type | D.O.T. Air Brake Composite Push-To-Connect Fittings |

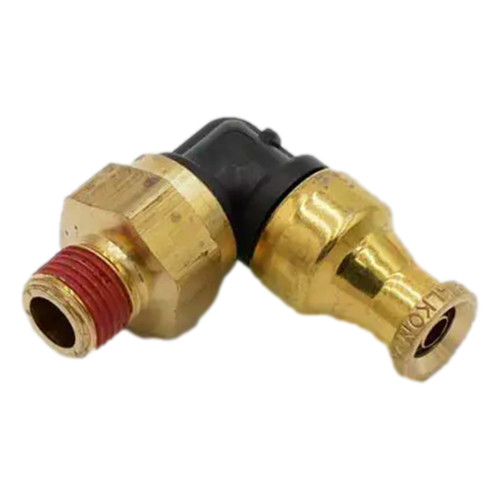

| Style | Swivel 90 deg Male Elbow |
| Material | Body (straights): High-strength reinforced composite (PBT); Nose, tube supports and grippers: Brass; Forged elbows: Brass |
| VPN | PAQ69-DOTS-8X4 |
| Tube O.D. | 1/2 in |
| Pipe Thread | 1/4 in |
| Width from Center | 1.24 in |
| Length From Center | 1.34 in |
| Hex | 7/8 in |
| Overall Length | 1.78 in |
| Threads | NPTF Standard |
| DOT | FMVSS 571.106 |
| SAE | J1131, J2494-1 & J2494-3 |
| PSI | Fittings are designed to handle 200 psi working pressure |
| Use With | D.O.T. Tubing / SAE J844 Air Brake Tubing |
| Temperature Range | -40 deg F to 220 deg F |
