- Very popular in heavy duty truck markets
- Good selection of hose end configurations
- Compatible with a variety of hoses
- Diverse number of applications
- Non-mandrel assembly
| Type | 247 'N’ Series, Field Attachable Hose Fittings |

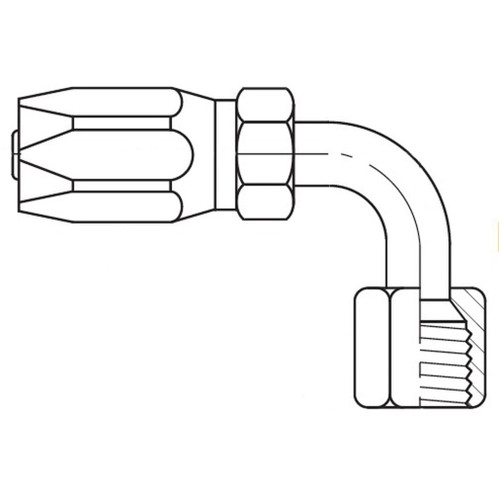

| Style | JIC 37° Female Swivel 90° Elbow |
| Size | 1/2" |
| Material | Carbon steel |
| I.D. | 29/64" |
| Tube O.D. | 1/2" |
| Finish | Zinc Clear Trivalent Chromate |
| Hose I.D. | 1/2" |
| Construction Style | Reusable |
| FPT | 0.5" |
| Dash Size | -10 |
| Working Pressure | 4000 PSI |
| Compatible Hoses | H059 H069 H166 H169 H229 H366 H569 |
| Manufacture Part # | 24710N-668 |
