SKU 1168PX8X4

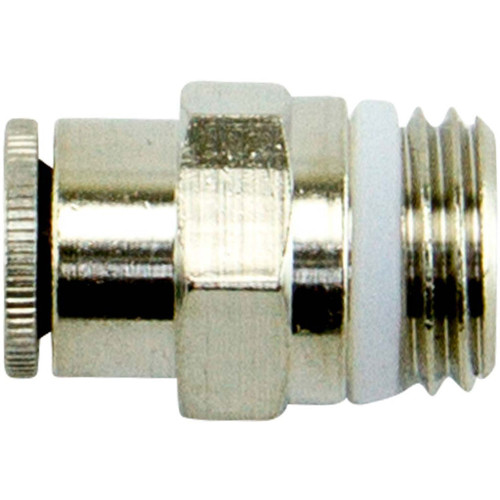

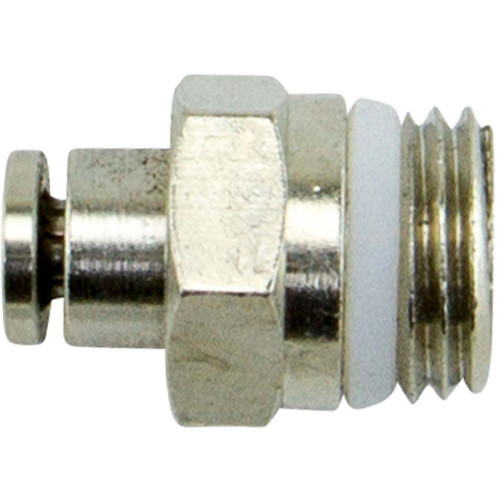

1/2" Tube O.D. x 1/4" MPT, Push Connect Plus Male Connector - 1168PX8X4

California Residents: Prop 65 Warning
WARNING: Cancer and Reproductive Harm

Pkg Qty: 1
  • Push Connect Plus, Male Connector has a captured Teflon® ring around the base of the hex shoulder, seals similar to a reusable (SAE type) seal eliminates thread sealant and loose particles associated with thread sealant
  • Push Connect Plus has a lower profile for those tight places
  • The new brass collet is designed for use with all types of tubing from Nylon to 90A durometer Polyurethane, including Polyethylene, and PVC tubing
Type Push>Connect Plus
Style Male Connector
Size 1/2" x 1/4"
Material Brass
Tube O.D. 1/2"
MPT 1/4"
Temp Range -40° F to 200° F
Pressure Up to 250 psi depending on tube size
Sealing Method O-Ring of Buna-N Construction
