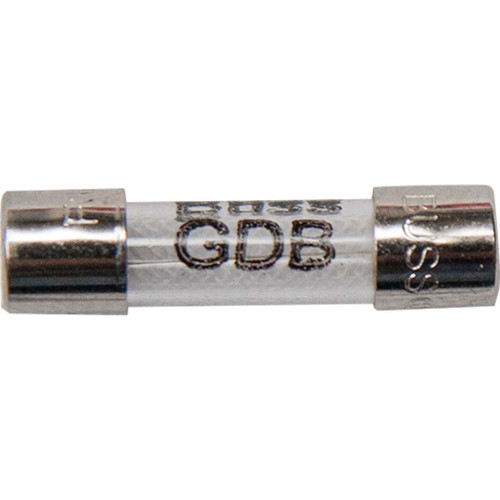

- 1/4" Dia Ferrule Fuses
- Typically used in electronic circuit applications and are available from 1/500 A to 30 A versions
- Rated at 250 VAC (1/500 – 2 A), 125 Vac (25 to 7 A), and 32 V (8 to 30A)
| Type | Glass Tube |
| Style | Fast-Acting |
| Voltage | 250 VAC |
| Amps | 1.25 |
| Material | Glass |
| Element | Single |
| Length | 1" |
| Dia. | 1/4" |
| Series | AGX |
| Industry No. | AGX-1.25 |
| Indicating / Nonindicating | Nonindicating |
| Class | Ferriule |
| Body Style | Cylindrical |
| Interrupt Rating | 10kA |
| Standards | Guide JDYX, File E 19180 and Guide JDYX7, File E19180, UL Recognized Card |
| Application | Electronic Circuits |
