AERO FASTENERS
AN4C13
SKU AN4C13

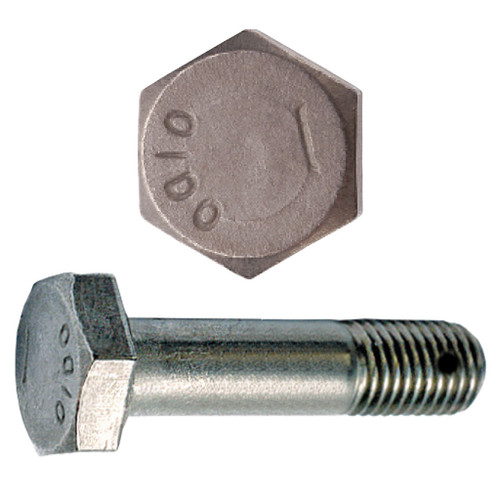

1/4"-28 x 1-13/32" AN4 Hex Head Airframe Bolt, Corrosion Resistant Steel

UPC:
31161620
Pkg Qty: 5
  • Hex Head Airframe Bolts come in either drilled or undrilled shank versions
  • Threads are pressed into the steel, not cut, thus maintaining strength throughout the entire shank
  • The surface under the head of AN bolts is designed to be a bearing surface to reduce non-uniform stress as the bolt is torqued thus reducing premature fatigue
Type Hex Head Airframe Bolt
Style AN4
Size 1/4"-28
Length 1-13/32"
Material Corrosion Resistant Steel
Dia. Max 0.249
Dia. Min 0.246
Head Style Hex
Wrench Size 7/16"
Shank Hole 0.076
Head Hole None
Min Tensile Strength 125,000 psi
Grip 15/16
Finish Spec NA
Compatible Washer AN960-416 or AN970-4
Compatible Nut AN365-428
Fits Cotter Pin AN381-2-8/MS24655-151 or longer
Thread Type UNF-3A
Length 0.469
AN Part No. AN4C-13
