AERO FASTENERS
AN4C11A
SKU AN4C11A

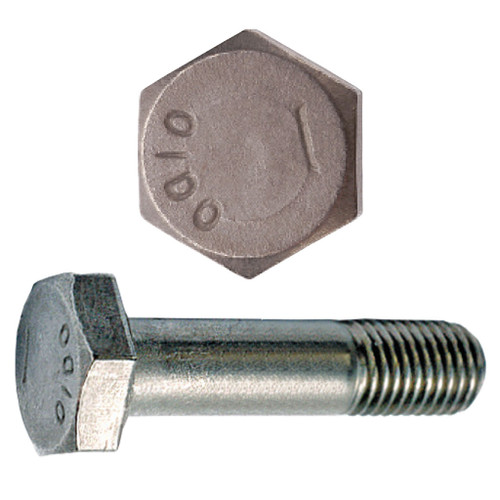

1/4 in-28 x 1-5/32" ANC4 Hex Head Airframe Bolt, Corrosion Resistant Steel

UPC:
31161620

California Residents: Prop 65 Warning
WARNING: Cancer and Reproductive Harm
www.p65warnings.ca.gov

Pkg Qty: 10

  • Hex Head Airframe Bolts come in either drilled or undrilled shank versions
  • Threads are pressed into the steel, not cut, thus maintaining strength throughout the entire shank
  • The surface under the head of AN bolts is designed to be a bearing surface to reduce non-uniform stress as the bolt is torqued thus reducing premature fatigue
Type Hex Head Airframe Bolt
Style AN4
Size 1/4"-28
Length 1-5/32"
Material Corrosion Resistant Steel
Dia. Max 0.249
Dia. Min 0.246
Head Style Hex
Wrench Size 7/16"
Shank Hole None
Head Hole None
Min Tensile Strength 125,000 psi
Grip 11/16
Finish Spec NA
Compatible Washer AN960-416 or AN970-4
Compatible Nut AN365-428
Fits Cotter Pin AN381-2-8/MS24655-151 or longer
Thread Type UNF-3A
Length 0.469
AN Part No. AN4C-11A
