SKU IRC061201

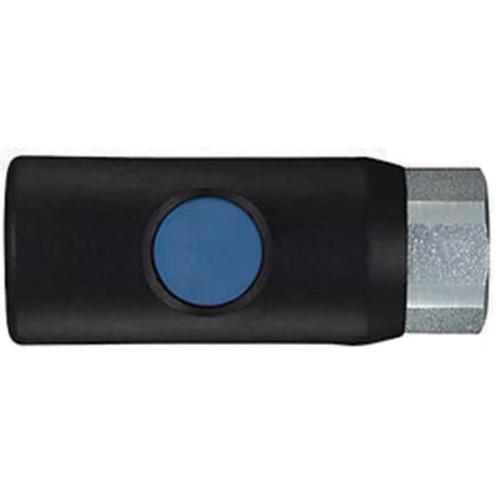

1/4" Body Size, 1/4" FPT Prevost Standard Push Button Couplers, Industrial interchange

Pkg Qty: 2
  • Prevost standard push button couplers have a body shell made of fiberglass filled Nylon 66
  • To engage, double click; the first click locks coupler and plug whereas the second click engages the air pressure
  • To disconnect, push button twice; the first push relieves pressure and the second push allows plug and coupler to be disengaged
Type Coupler
Style Push Button
Size 1/4"
Material Composite with Metal Button
Thread Type Female
Color Blue Body/Silver Button
Interchange Industrial
Body Size 1/4"
Max Air Pressure 174 psi
Air Flow DP 10 psi = 33 SCFM @ 100 psi
Rubber Seal Buna-N
