EATON WEATHERHEAD
1568X4G
SKU 1568X4G

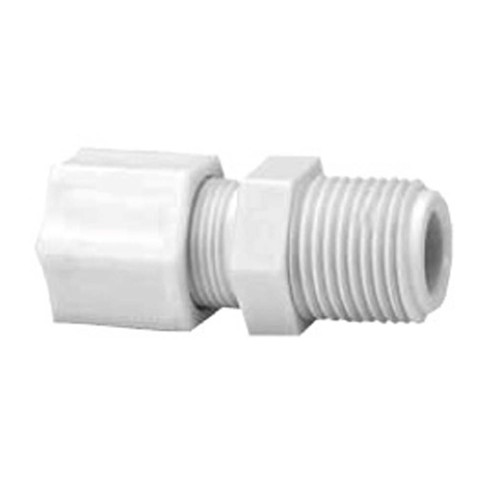

1/4" Tube O.D. x 1/8" MPT, Male Connector Molded Compression Tube Fittings - 1568X4G

California Residents: Prop 65 Warning
WARNING: Cancer and Reproductive Harm
www.p65warnings.ca.gov

Pkg Qty: 10

  • Male Connector Molded Compression Tube Fittings offers leak-free performance that is easy to assemble with no special tools or tube preparation necessary
  • High integrity in both mechanical and acoustical vibrations
  • Reliability in side-loaded applications allows for compact plumbing
  • For use with PT200, PT240, and TP160 plastic tubing
  • Connectors come fully assembled for your convenience
  • ISO 9001 Certified
  • Good resistance to organic solvents, oils, and gasoline
  • Excellent impact resistance
  • Tolerant to repeated steam for wash down and longtime weathering
  • FDA and NSF listed
  • A 'G' at the end of the part number indicates it comes with a Gripper Nut Fittings with a GRIPPER style nut are capable of handling greater pressure than those with standard style nut
Type Molded Compression Tube Fittings
Style Male Connector
Size 1/4" x 1/8"
Material Nylon
Tube O.D. 1/4"
MPT 1/8"
Temp Range -40°F to +200°F
