PARKER
PH68TF21
SKU PH68TF21

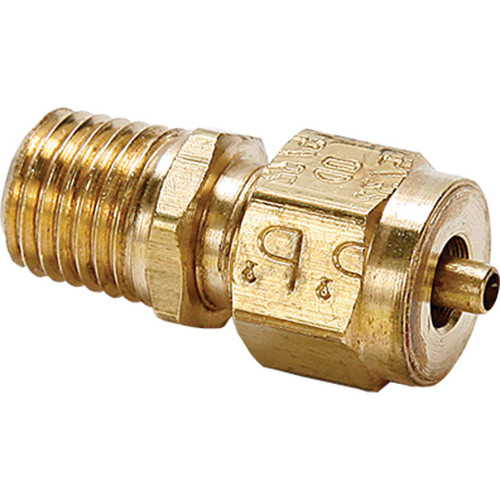

1/8" Tube O.D. x 1/16 MPT, Transmission Male Connector

Pkg Qty: 5
  • Transmission Male Connector fitting utilizes a specially designed slotted sleeve to help eliminate notch stress reslated to over-torque
  • The fitting design is ideally suited for use in pressure protected air transmission applications
Type Transmission
Style Male Connector
Size 1/8" x 1/16"
Material Brass
Tube O.D. 1/8"
MPT 1/16
Temp Range -65° to 250° F
Pressure 2000 psi
Used With cooper, brass, aluminum and steel hydraulic tubing that can be flared.
