AERO FASTENERS
AN33
SKU AN33

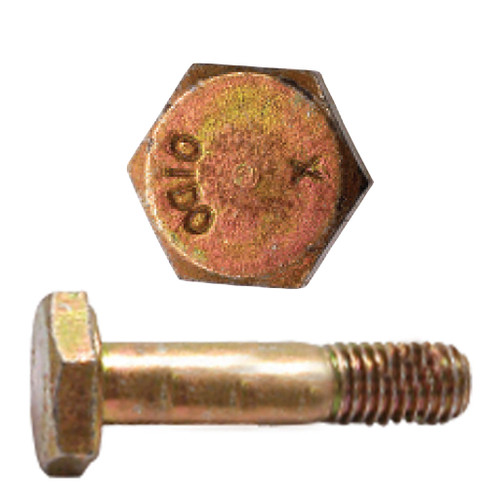

#10-32 x 15/32" AN3 Hex Head Airframe Bolt, Cadmium Plated

UPC:
31161620

California Residents: Prop 65 Warning
WARNING: Cancer and Reproductive Harm
www.p65warnings.ca.gov

Pkg Qty: 100

  • Hex Head Airframe Bolts come in either drilled or undrilled shank versions
  • Threads are pressed into the steel, not cut, thus maintaining strength throughout the entire shank
  • The surface under the head of AN bolts is designed to be a bearing surface to reduce non-uniform stress as the bolt is torqued thus reducing premature fatigue
Type Hex Head Airframe Bolt
Style AN3
Size #10-32
Length 15/32"
Material Steel
Dia. Max 0.189
Dia. Min 0.186
Head Style Hex
Wrench Size 3/8"
Shank Hole 0.070
Head Hole None
Min Tensile Strength 125,000 psi
Grip 1/16
Finish Spec QQ-P-416, Type II, Grade/Class 3
Compatible Washer AN960-10 or AN970-3
Compatible Nut AN365-1032
Fits Cotter Pin AN380-2-2/MS24665-132 or longer
Thread Type UNF-3A
Length 0.406
AN Part No. AN3-3
