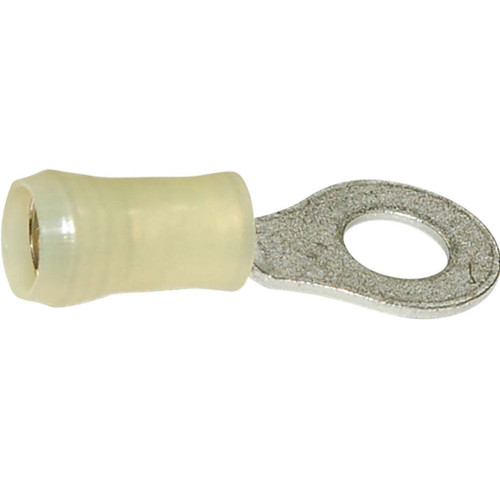

- PIDG (Pre-Insulated DIAMOND GRIP)
- Feature nylon insulation and a copper sleeve over the barrel to provide insulation support to wire to prevent the wire from fraying or breaking
| Type | PIDG |
| Style | Ring |
| AWG | 12-10 |
| Color | Yellow |
| Voltage | 600 VAC |
| Finish | Tin |
| Insulation | Nylon |
| Material | Copper |
| Stud Size | 1/2" |
| Temp Range | 105° C (221° F) |
| Mil-Spec | MS25036-158 |
| Length | 1.414 |
| Width | 0.715 |
| Throat Length | 0.474 |
| Effective Length | 1.065 |
| Material Thickness | 0.042 |
| Max Wire Insulation Dia. | 0.23 |
| Specifications | UL, CSA, MS25036-158 |
