TE CONNECTIVITY
AP35109
SKU AP35109

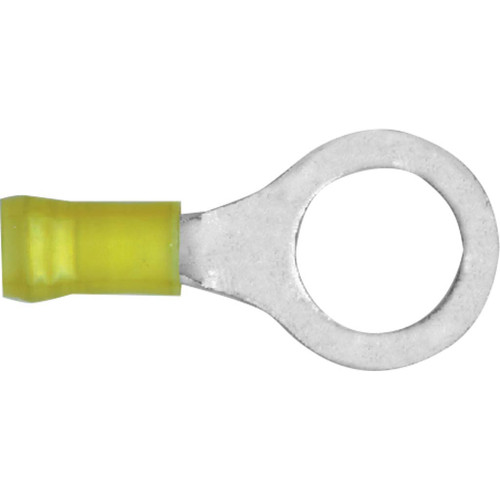

12-10 AWG, Standard #10 Stud Size, Ring Terminal, Nylon Insulation

California Residents: Prop 65 Warning
WARNING: Cancer and Reproductive Harm
www.p65warnings.ca.gov

Pkg Qty: 50

  • PIDG (Pre-Insulated DIAMOND GRIP)
  • Feature nylon insulation and a copper sleeve over the barrel to provide insulation support to wire to prevent the wire from fraying or breaking
Type PIDG
Style Ring
AWG 12-10
Color Yellow
Voltage 600 VAC
Finish Tin
Insulation Nylon
Material Copper
Stud Size #10
Temp Range 105° C (221° F)
Mil-Spec MS25036-112
Length 1.083
Width 0.375
Throat Length 0.302
Effective Length 0.893
Material Thickness 0.042
Max Wire Insulation Dia. 0.25
Specifications UL, CSA
