3M™
2C855
SKU 2C855

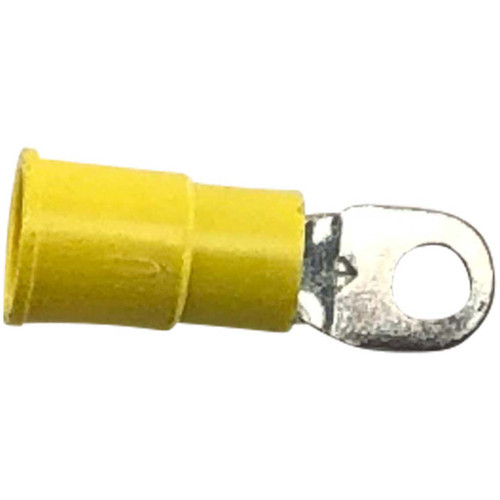

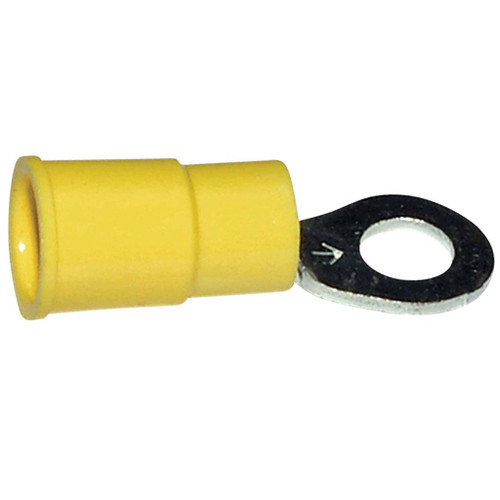

12-10 AWG, 1/4" Stud Size, Ring Terminal, Vinyl Insulated

UPC:
39121432
Pkg Qty: 50

  • Temperature Rating: -40°F to 221°F
  • 600 Volt Rating
  • Annealed Copper – Electro-Tin Plated
Type Vinyl Insulated
Style Ring
AWG 12-10
Color Yellow
Voltage 600 VAC, 60 VDC
Finish Tin
Insulation PVC
Material Copper
Stud Size 1/4"
Series 2
Barrel Type Closed
Max Wire Insulation Dia. 0.25
Length 1.26
Width 0.53
Throat Length 0.44
Effective Length 0.99
Barrel I.D. 0.135
Material Thickness 0.04
Specifications UL, CSA
