TE CONNECTIVITY
AP322985
SKU AP322985

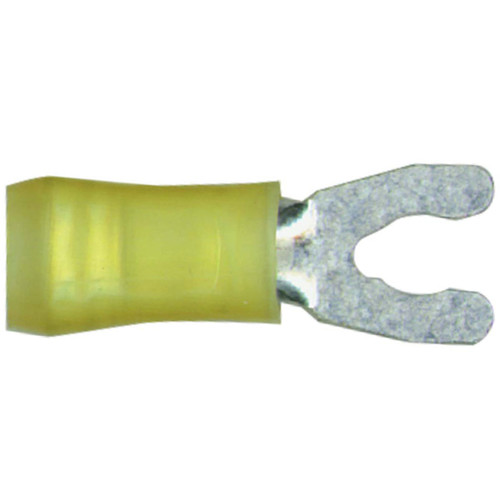

12-10 AWG, #6 Stud Size, Fork Terminal, Nylon Insulation

Pkg Qty: 50
  • PIDG (Pre-Insulated DIAMOND GRIP)
  • Feature nylon insulation and a copper sleeve over the barrel to provide insulation support to wire to prevent the wire from fraying or breaking
Type PIDG
Style Fork
AWG 12-10
Color Yellow
Voltage 600 VAC
Finish Tin
Insulation Nylon
Material Copper
Stud Size #6
Temp Range 105° C (221° F)
Length 0.954
Width 0.809
Throat Length 0.218
Effective Length 0.809
Material Thickness 0.042
Max Wire Insulation Dia. 0.23
Specifications UL,CSA
