TE CONNECTIVITY
AP32588
SKU AP32588

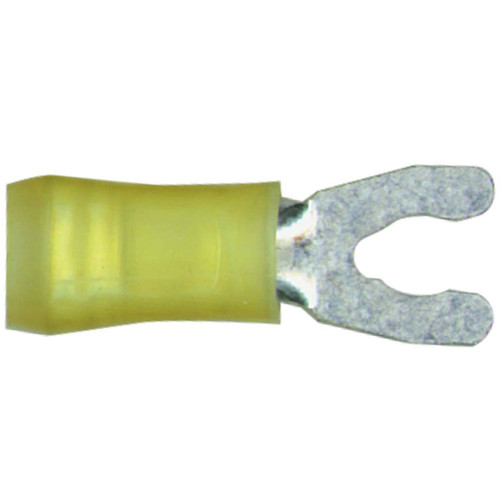

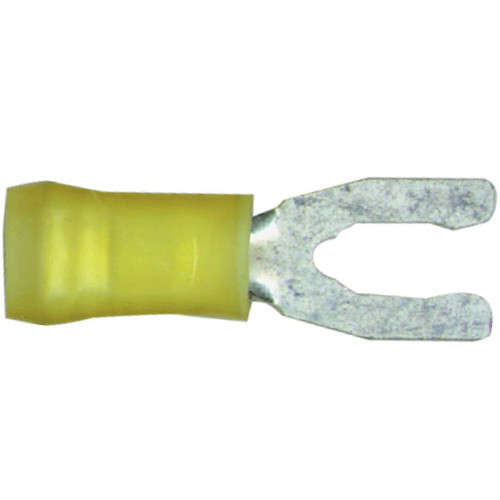

12-10 AWG, #8 Stud Size, Fork Terminal, Nylon Insulation

California Residents: Prop 65 Warning
WARNING: Cancer and Reproductive Harm
www.p65warnings.ca.gov

Pkg Qty: 50

  • PIDG (Pre-Insulated DIAMOND GRIP)
  • Feature nylon insulation and a copper sleeve over the barrel to provide insulation support to wire to prevent the wire from fraying or breaking
Type PIDG
Style Fork
AWG 12-10
Color Yellow
Voltage 600 VAC
Finish Tin
Insulation Nylon
Material Copper
Stud Size #8
Temp Range 105° C (221° F)
Length 1.095
Width 0.406
Throat Length 0.296
Effective Length 0.887
Material Thickness 0.042
Max Wire Insulation Dia. 0.23
Specifications UL, CSA
