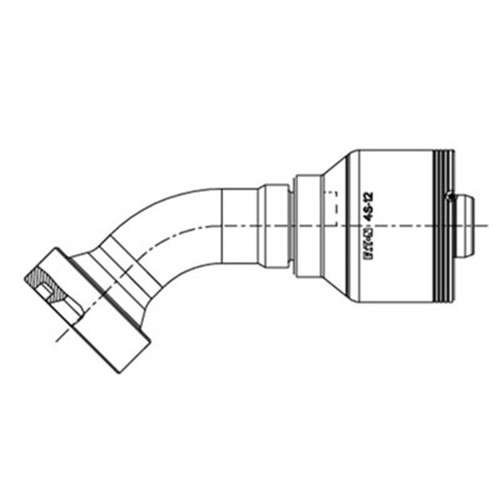

SAE Code 62 Flange (FHA), 45 deg Elbow 4S/6S Spiral Series Hose Fittings are a higher performing spiral hose assembly for the most demanding applications while using a simple more user-friendly hose and hose fitting assembly process, featuring DuraKote plating technology
| Type | 4S/6S Spiral Hose Fitting |
| Style | SAE Code 62 Flange, Straight |
| Size | -12 HOSE X -12 END |
| Material | Carbon steel |
| Hose Dash No. | -12 |
| End Dash No. | -12 |
| Flange Head Dia. | 1.63" |
| Construction Style | Crimp |
| Compatible Hoses | H430-6,-8,-10,-12,-16,-20,-24,-32; H430R-6,-8,-10,-12,-16,-20,-24,-32; H464-12,-16,-20,-24,-32; H471-12,-16,-20,-24; EC600-12,-16; EC525-12,-16,-20,-24,-32; EC810-12,-16 |
