TE CONNECTIVITY
AP320561
SKU AP320561

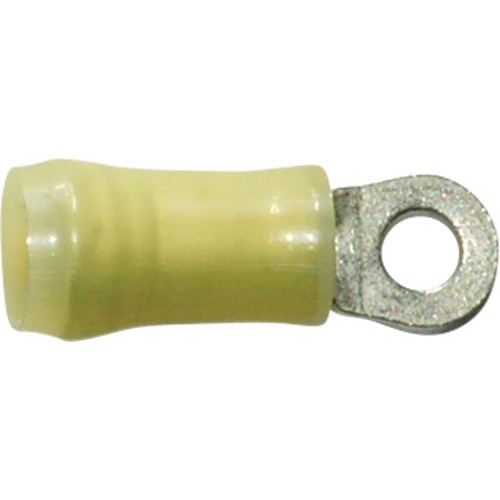

16-14 AWG, Narrow #6 Stud Size, Ring Terminal, Nylon Insulation

California Residents: Prop 65 Warning
WARNING: Cancer and Reproductive Harm
www.p65warnings.ca.gov

Pkg Qty: 100

  • PIDG (Pre-Insulated DIAMOND GRIP)
  • Feature nylon insulation and a copper sleeve over the barrel to provide insulation support to wire to prevent the wire from fraying or breaking
Type PIDG
Style Ring
AWG 16-14
Color Blue
Voltage 600 VAC
Insulation Nylon
Material Copper
Stud Size #6
Temp Range 105° C (221° F)
Mil-Spec MS25036-106
Length 0.703
Width 0.25
Throat Length 0.171
Finish Tin
Material Thickness 0.033
Max Wire Insulation Dia. 0.15
Specifications UL, CSA
