TE CONNECTIVITY
AP31894
SKU AP31894

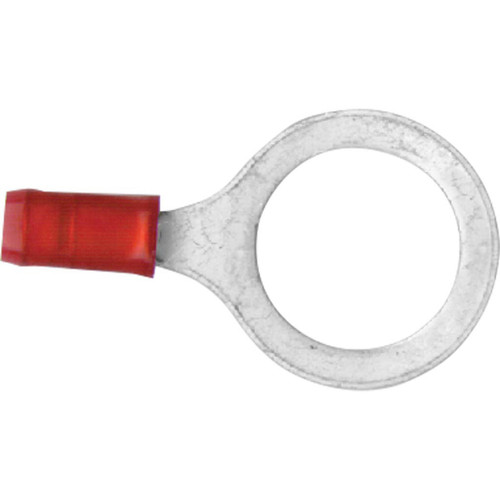

22-16 AWG, 1/4" Stud Size, Ring Terminal, Nylon Insulation

California Residents: Prop 65 Warning
WARNING: Cancer and Reproductive Harm
www.p65warnings.ca.gov

Pkg Qty: 100

  • PIDG (Pre-Insulated DIAMOND GRIP)
  • Feature nylon insulation and a copper sleeve over the barrel to provide insulation support to wire to prevent the wire from fraying or breaking
Type PIDG
Style Ring
AWG 22-16
Color Red
Voltage 600 VAC
Insulation Nylon
Material Copper
Stud Size 1/4"
Temp Range 105° C (221° F)
Mil-Spec MS25036-150
Length 1.078
Width 0.469
Throat Length 0.437
Finish Tin
Material Thickness 0.033
Max Wire Insulation Dia. 0.14
Specifications UL, CSA, MS25036-150
