TE CONNECTIVITY
AP36153
SKU AP36153

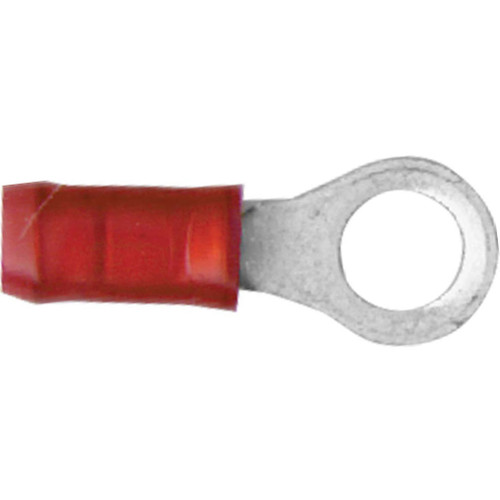

22-16 AWG, #10 Stud Size, Ring Terminal, Nylon Insulation - Max Wire Diameter .125

Pkg Qty: 100
  • PIDG (Pre-Insulated DIAMOND GRIP)
  • Feature nylon insulation and a copper sleeve over the barrel to provide insulation support to wire to prevent the wire from fraying or breaking
Type PIDG
Style Ring
AWG 22-16
Color Red
Voltage 600 VAC
Insulation Nylon
Material Copper
Stud Size #10
Temp Range 105° C (221° F)
Mil-Spec MS25036-103
Length 0.844
Width 0.312
Throat Length 0.281
Finish Tin
Material Thickness 0.033
Max Wire Insulation Dia. 0.125
Specifications UL, CSA
