TE CONNECTIVITY
AP320559
SKU AP320559

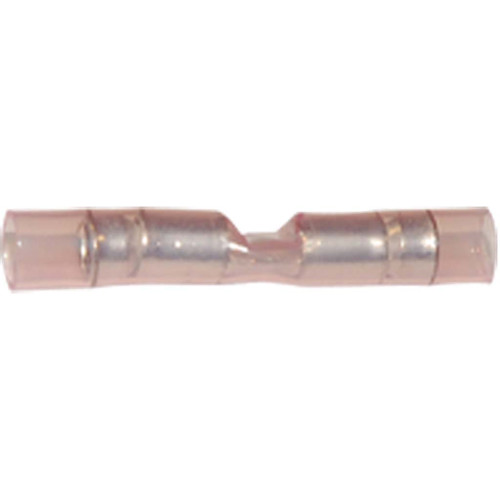

22-16 AWG, Butt Splice Terminal, Nylon Insulation

Pkg Qty: 50
  • PIDG (Pre-Insulated DIAMOND GRIP)
  • Feature nylon insulation and a copper sleeve over the barrel to provide insulation support to wire to prevent the wire from fraying or breaking
Type PIDG
Style Butt Splice
AWG 22-16
Color Red
Voltage 600 VAC
Insulation Nylon
Material Copper
Temp Range 105° C (221° F)
Mil-Spec M7928/5-3
Length 1.265
Finish Tin
Max Wire Insulation Dia. 0.125
Specifications UL, CSA
