CR324262
SKU CR324262

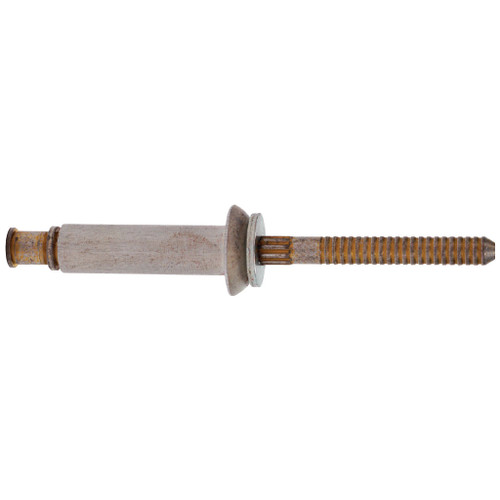

3/16" 100 Degree Flush Head Cherrymax Rivet, Grip Range 0.063‚ 0.125 - Oversized

UPC:
31162201
Pkg Qty: 25
  • Fully serrated stem with break notch, shear-ring and integral grip adjustment cone
  • Driving Anvil to ensure a visible mechanical lock with each fastener installation
  • Separate, visible and inspectable locking collar that mechanically locks stem to the rivet sleeve
  • Rivet sleeve with recess in the head to receive the locking collar
  • Universal rounded head (MS20470) for applications where a protruding finish is desired
Type Cherrymax Rivet
Style 100° Flush Head
Size 3/16"
Material Alloy Steel Stem/Aluminum Sleeve
Grip Range 0.063–0.125
Head Style 100° Flush Head
Stem Material 8740 Alloy Steel/Cadmium Plated, Type II Grade/Class 2
Lock Collar Material Corrosion Resistant Steel/Passivated
Shear Strength 50,000 psi
Hole Limits 0.205 – 0.209
Blind Clearance 0.410
Max Temp 250° F
Dia. 0.201
NAS Part No. NAS9305B-6-02
