FL3.50
SKU FL3.50

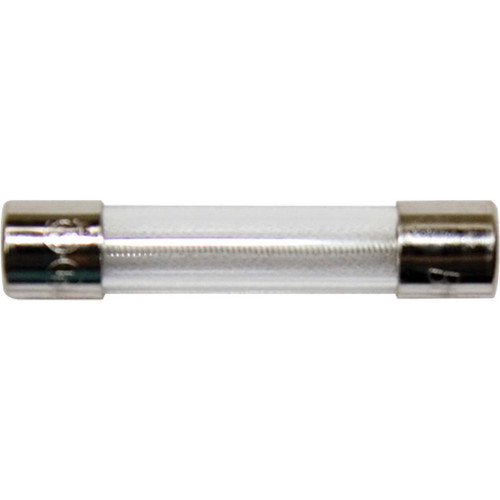

3.5 Amps (MDL-3-1-2-R), Time-Delay Glass Tube

Pkg Qty: 5
  • Glass Tube
  • Time delay, interrupting
  • 63mm × 32mm, 1/4" × 1-1/4"
  • 32V–250VAC
Type Glass Tube
Style Time-Delay
Voltage 250 VAC
Amps 3.5
Material Glass
Element Single
Length 1-1/4"
Dia. 1/4"
Series MDL
Industry No. MDL-3-1-2-R
Indicating / Nonindicating Nonindicating
Class Ferrule
Body Style Cylindrical
Interrupt Rating 100A
Standards CE, UL Listed, Guide JDYX, File E19180, 1⁄16-8A; CSA Certification Class 1422-01, 1⁄16-8A; UL Recognized, Guide JDYX2, File E19180
Application Electronic Circuits
