AERO FASTENERS
AN610A
SKU AN610A

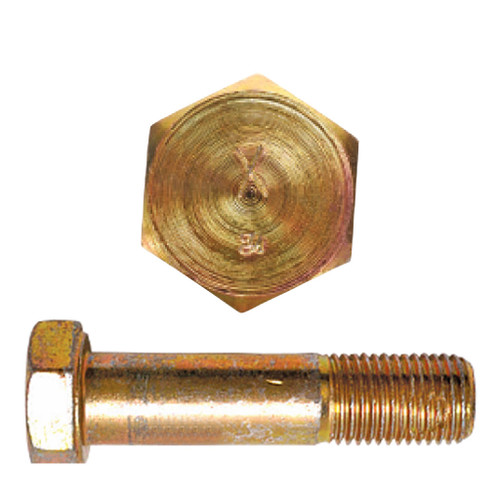

3/8 in-24 x 1-5/64" AN6 Hex Head Airframe Bolt, Cadmium Plated, Undrilled Shank

UPC:
31161620

California Residents: Prop 65 Warning
WARNING: Cancer and Reproductive Harm
www.p65warnings.ca.gov

Pkg Qty: 100

  • Hex Head Airframe Bolts come in either drilled or undrilled shank versions
  • Threads are pressed into the steel, not cut, thus maintaining strength throughout the entire shank
  • The surface under the head of AN bolts is designed to be a bearing surface to reduce non-uniform stress as the bolt is torqued thus reducing premature fatigue
Type Hex Head Airframe Bolt
Style AN6
Size 3/8"-24
Length 1-5/64"
Material Steel
Dia. Max 0.374
Dia. Min 0.371
Head Style Hex
Wrench Size 9/16"
Shank Hole None
Head Hole None
Min Tensile Strength 125,000 psi
Grip 7/16
Finish Spec QQ-P-416, Type II, Grade/Class 3
Compatible Washer AN960-616 or AN970-6
Compatible Nut AN365-624
Fits Cotter Pin AN380-3-3/MS24665-283 or longer
Thread Type UNF-3A
Length 0.641
AN Part No. AN6-10A
