AERO FASTENERS
AN65
SKU AN65

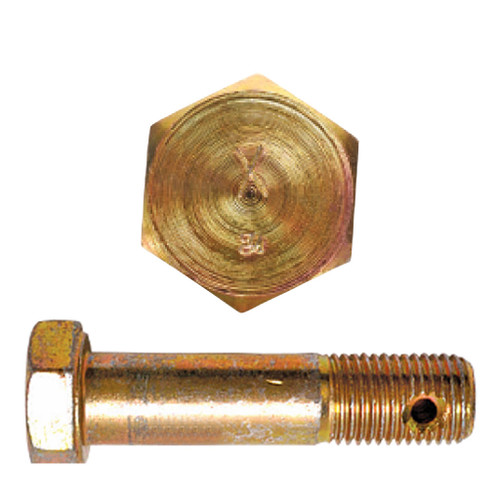

3/8"-24 x 45/64" AN6 Hex Head Airframe Bolt, Cadmium Plated

UPC:
31161620
Pkg Qty: 10
  • Hex Head Airframe Bolts come in either drilled or undrilled shank versions
  • Threads are pressed into the steel, not cut, thus maintaining strength throughout the entire shank
  • The surface under the head of AN bolts is designed to be a bearing surface to reduce non-uniform stress as the bolt is torqued thus reducing premature fatigue
Type Hex Head Airframe Bolt
Style AN6
Size 3/8"-24
Length 45/64"
Material Steel
Dia. Max 0.374
Dia. Min 0.371
Head Style Hex
Wrench Size 9/16"
Shank Hole 0.106
Head Hole None
Min Tensile Strength 125,000 psi
Grip 1/16
Finish Spec QQ-P-416, Type II, Grade/Class 3
Compatible Washer AN960-616 or AN970-6
Compatible Nut AN365-624
Fits Cotter Pin AN380-3-3/MS24665-283 or longer
Thread Type UNF-3A
Length 0.641
AN Part No. AN6-5
