SKU URC081251

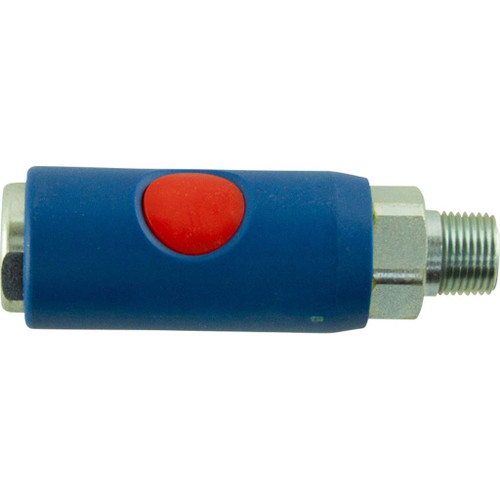

3/8" Body Size, 1/4" MPT Prevost Standard Push Button Couplers, Tru-Flate interchange - URC081251


California Residents: Prop 65 Warning
WARNING: Cancer and Reproductive Harm

Pkg Qty: 1
  • Prevost standard push button couplers have a body shell made of fiberglass filled Nylon 66
  • To engage, double click; the first click locks coupler and plug whereas the second click engages the air pressure
  • To disconnect, push button twice; the first push relieves pressure and the second push allows plug and coupler to be disengaged
Type Coupler
Style Push Button
Size 1/4"
Material Composite with Metal Button
Thread Type Male
Color Blue Body.Red Button
Interchange Tru-Flate
Body Size 3/8"
Max Air Pressure 232 psi
Air Flow DP 10 psi = 71 SCFM @ 100 psi
Rubber Seal Buna-N
