SKU 4L4012

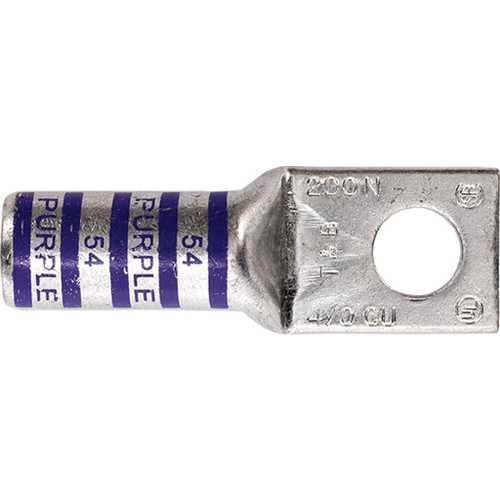

4/0 AWG, Single Hole, 1/2" Stud, (Purple) Copper Industrial Lugs - Short Barrel

Pkg Qty: 10
  • Ilsco SureCrimp single-hole compression lugs are made with Copper tubing construction and feature a chamfered end for easy conductor insertion
  • Short barrel, single hole lugs are ideal for standard applications and can be used in confined spaces
Type Industrial Lugs
Style Single Hole
AWG 4/0
Color Purple
Finish Tin
Material Copper
Stud Size 1/2"
Die Code I-54
Tongue Style Standard
Barrel Type Straight
Outside Dia. 0.687
Inside Dia. 0.546
Overall Length 2.616
Tang Length 1.25
Tang Width 0.999
Barrel Length 0.875
Standards UL Listed and CSA Certified
