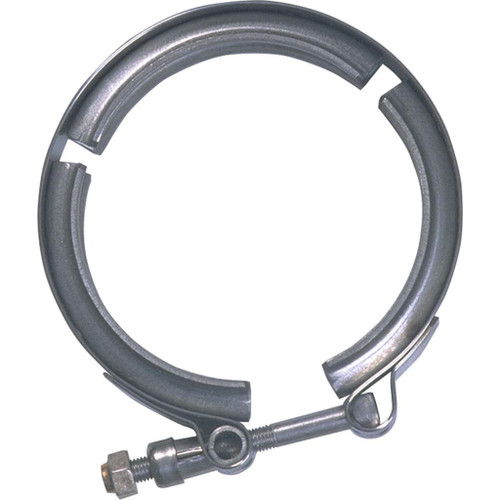

- T-bolt, V-band flange joint clamps provide a fast and secure method to couple virtually any flanged joint
- High strength and positive sealing are attained by using V-segments welded to a rugged stainless steel band
Tech Data (PDF)
| Type | Joint Clamps |
| Style | V-Band |
| Size | 4.75" |
| Material | 300 Stainless Steel |
| Band Finish | Clear |
| Bolt Material | 400 Stainless Steel |
| Screw Finish | Clear |
| Nut Hex size | 5/16" |
| Nom. Dia. | 4.75 |
| V-Band Thickness | 0.05 |
| V-Band Inner Width | 0.4 |
| V-Band Height | 0.281 |
| Outer Band Thickness | 0.04 |
| Outer Band Width | 0.875 |
