AERO FASTENERS
AN524
SKU AN524

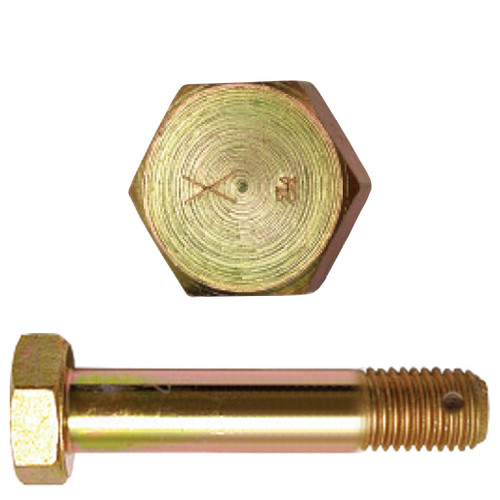

5/16 in-24 x 2-19/32" AN5 Hex Head Airframe Bolt, Cadmium Plated

UPC:
31161620

California Residents: Prop 65 Warning
WARNING: Cancer and Reproductive Harm
www.p65warnings.ca.gov

Pkg Qty: 100

  • Hex Head Airframe Bolts come in either drilled or undrilled shank versions
  • Threads are pressed into the steel, not cut, thus maintaining strength throughout the entire shank
  • The surface under the head of AN bolts is designed to be a bearing surface to reduce non-uniform stress as the bolt is torqued thus reducing premature fatigue
Type Hex Head Airframe Bolt
Style AN5
Size 5/16"-24
Length 2-19/32"
Material Steel
Dia. Max 0.312
Dia. Min 0.309
Head Style Hex
Wrench Size 1/2"
Shank Hole 0.076
Head Hole None
Min Tensile Strength 125,000 psi
Grip 2-1/16
Finish Spec QQ-P-416, Type II, Grade/Class 3
Compatible Washer AN960-516 or AN970-5
Compatible Nut AN365-524
Fits Cotter Pin AN380-25-3/MS24665-208
Thread Type UNF-3A
Length 0.531
AN Part No. AN5-24
