CR324351
SKU CR324351

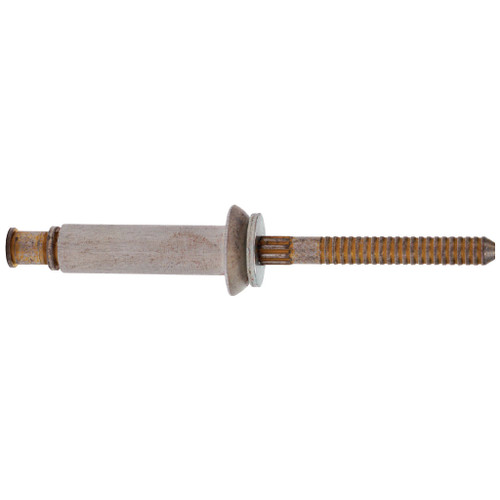

5/32" 100° Universal Head Cherrymax Rivet, Grip Range 0.037–0.062 - Oversized

UPC:
31162201
Pkg Qty: 10
  • Fully serrated stem with break notch, shear-ring and integral grip adjustment cone
  • Driving Anvil to ensure a visible mechanical lock with each fastener installation
  • Separate, visible and inspectable locking collar that mechanically locks stem to the rivet sleeve
  • Rivet sleeve with recess in the head to receive the locking collar
  • Universal rounded head (MS20470) for applications where a protruding finish is desired
Type Cherrymax Rivet
Style 100° Flush Head
Size 5/32"
Material Alloy Steel Stem/Aluminum Sleeve
Grip Range 0.037–0.062
Head Style Universal Head
Stem Material 8740 Alloy Steel/Cadmium Plated, Type II Grade/Class 2
Lock Collar Material Corrosion Resistant Steel/Passivated
Shear Strength 50,000 psi
Hole Limits 0.176 – 0.180
Blind Clearance 0.395
Max Temp 250° F
Dia. 0.173
NAS Part No. NAS9304B-5-01
